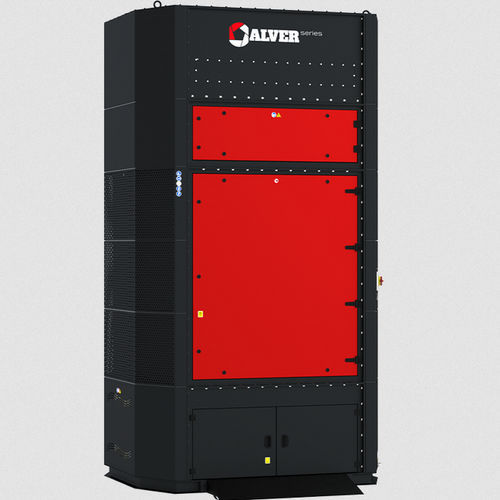

Centralized fume extraction system with jet pulse cleaning ALVER

centralized fume extraction system with jet pulse cleaning
centralized fume extraction system with jet pulse cleaning
Add to favorites
Compare this product


Filter type
Other characteristics
dust, automatic, with jet pulse cleaning, compact, with ventilator

Min.: 12,000 m³/h
(423,776 ft³/h)

Max.: 20,000 m³/h
(706,293 ft³/h)

5,000 m³/h, 10,000 m³/h, 12,000 m³/h
(176,573 ft³/h, 353,147 ft³/h, 423,776 ft³/h)


Min.: 5.5 kW
(7.48 hp)

Max.: 11 kW
(14.96 hp)

11 kW
(14.96 hp)


The Bomaksan ALVER series Jet-Pulse Airtowers deliver exceptional performance in welding fume extraction, dramatically reducing dust and fumes in under two hours. These compact, energy-efficient units are perfect for areas where local extraction isn't feasible, handling medium to high dust loads. Engineered to surpass customer expectations with air capacities between 12,000 m³/h to 20,000 m³/h, they excel in a variety of applications while requiring minimal space. They are also available for oil mist and fumes. For assistance in determining your required capacity, our experts are available to help. Dimensions: 2.250 x 1.800 x 3.500 mm Noise Level: at 65 dB(a) at 68 dB(a) at 75 dB(a)
