Locking washer
sphericalsteelstainless steel

locking washer
locking washer
locking washer
Add to favorites
Compare this product


Characteristics

Type
locking
Configuration
spherical
Material
steel, stainless steel
Internal diameter

Min.: 6.4 mm
(0.25 in)

Max.: 56 mm
(2.2 in)

External diameter

Min.: 12 mm
(0.472 in)

Max.: 92 mm
(3.622 in)

Thickness

Min.: 2.3 mm
(0.091 in)

Max.: 22 mm
(0.866 in)

Description

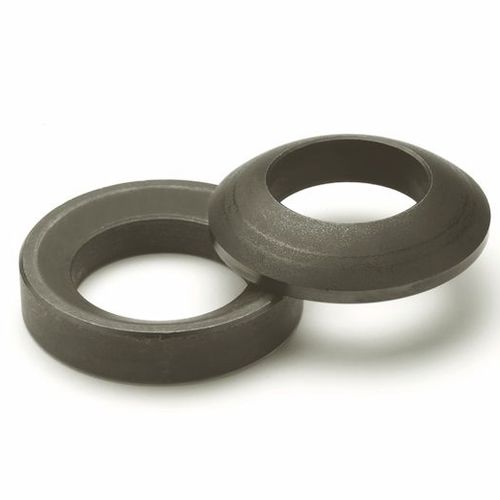

Spherical Washer Key Features Seating washers supplied in pairs, both female and male (concave and convex). Spherical seat washers are to DIN 6319 C/D) Case hardened blackened steel Spherical Seat Washer or Dished Washers DIN 6319 Spherical Washers are designed to aid even fastening between parts with irregular alignment. The top washer features a convex spherical radius for aligning in the concaved bottom washer. Both spherical washers (top and bottom), when used together, form a male to female type assembly. The top and bottom spherical washers are sold separately. The DIN 6319 series are suffixed with a 'C' for the top washer (Convex) and 'D' for bottom washer (Concaved). Spherical washers are manufactured from case hardening steel and blackened finish.
