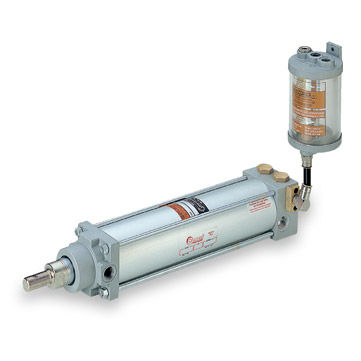

Hydro-pneumatic cylinder UR serieswith piston rodtie-rodaluminum
Add to favorites
Compare this product
Characteristics
- Type
- hydro-pneumatic
- Technology
- with piston rod, tie-rod
- Material
- aluminum
- Stroke
Max.: 2,000 mm
(78.74 in)Min.: 100 mm
(3.937 in)- Bore
Max.: 200 mm
(7.87 in)Min.: 50 mm
(1.97 in)- Pressure
7 bar
(101.53 psi)- Speed
Max.: 16,000 mm/min
Min.: 60 mm/min
(0.04 in/s)- Operating Temperature
Max.: 70 °C
(158 °F)Min.: -20 °C
(-4 °F)
Description
The UR series units basically consist of a pneumatic cylinder with hydraulic decelerators of end of stroke by gradual closing.The system solves the problem connected with the absorption of the dynamic mass power. It is an alternative, for effectiveness, to the pneumatic cylinders with special decelerations cones.
EXPANSION TANK
Units include the integrated expansion tank
