- DIN rail enclosure
- Bopla Gehäuse Systeme GmbH

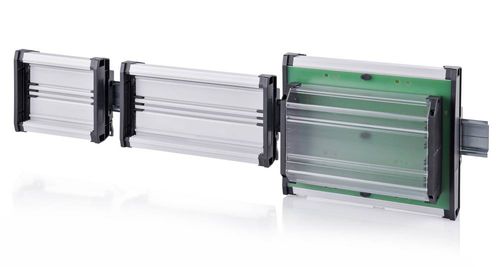

DIN rail enclosure Combirailmodularpolyamideelectronics
Add to favorites
Compare this product
Characteristics
- Construction
- for DIN rail
- Configuration
- modular
- Material
- polyamide
- Application
- electronics
- Protection level
- standard
- Other characteristics
- custom
- Width
89 mm, 124 mm, 139 mm
(3.5 in, 4.9 in, 5.5 in)- Height
32 mm
(1.3 in)- Depth
72 mm, 84 mm, 144 mm, 204 mm
(2.8 in, 3.3 in, 5.7 in, 8 in)
Description
Modular DIN rail enclosure made of polyamide UL 94 V0
• 3 basic sizes
• 3 standard lengths
• Special lengths on request
• Easy snap-on mounting
• 100°C temperature resistance
• Design-matching wall fitting
• Potential earthing for DIN rail
Colour
Profile: light grey, similar to RAL 7035; lateral elements: black, similar to RAL 9005; special colours on request
Enclosure Material
Extruded profiles: polyamide PA-GF HT, UL 94 V0; lateral elements: polyamide PA, UL 94 V0; for details see Technical Information.
