Impact crusher BLK01-E

mobilecompactprimary

Overview

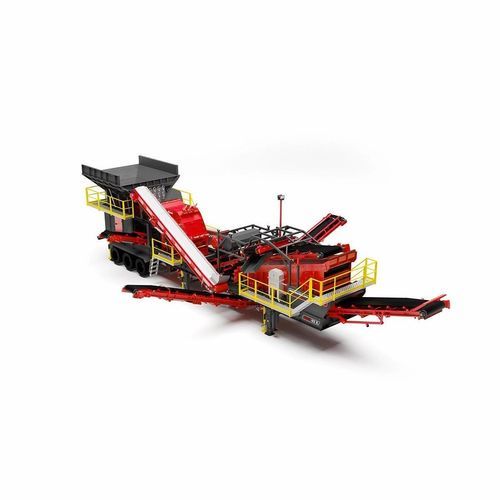

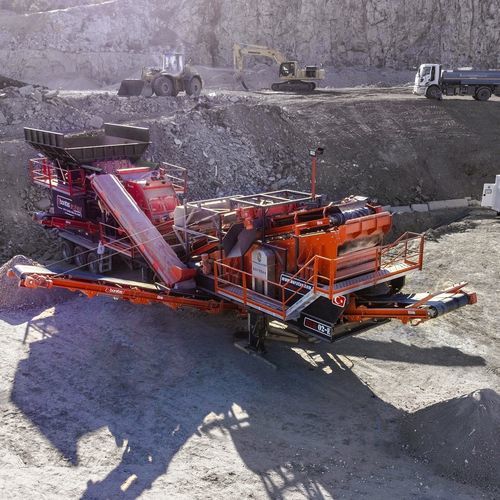

Borataş® Wheel-mounted Impact Crusher & Vibrating Screen BLK01-E integrates an impact crusher and a high-performance vibrating screen on a single wheeled chassis to provide a compact, portable crushing and screening solution for recycling, aggregates and mining applications. The unit is available in standard or configurable versions to suit varied site requirements and high-throughput operations.

Specifications
Capacity: 100 – 250 t/h
Max. Feed Size: 500 mm
Feeding Opening: 650 x 1080 mm
Rotor Diameter: 1200 mm
Rotor Width: 1000 mm
Weight: 55000 kg
Transport Dimensions: 19,520 x 4,100 x 4,560 mm
Operating Dimensions: 22,650 x 14,690 x 5,820 mm

Characteristics

• 1 Integration of Impact Crusher and Vibrating Screen – Single-chassis layout ensures smooth material flow, reduces auxiliary conveyors and simplifies logistics on site.
• 2 Compact and Portable Design – Wheel-mounted configuration enables fast relocation between sites and quick commissioning to minimize downtime.
• 3 Flexible Crushing and Screening Capabilities – Suitable for primary and secondary crushing of aggregates, demolition waste and minerals; screen delivers accurate product sizing.
• 4 User-Friendly Operation – Intuitive controls, PLC integration and easy access for maintenance reduce operating time and improve serviceability.
• 5 Enhanced Safety Features – Emergency stop devices, protective guards and engineered safety interlocks protect operators and equipment.
• 6 Impact Crusher – Rotor stress relief after welding; side liners in 16–18% manganese steel, bolted impact plates and two-part movable body for rapid replacement; hydraulic gap adjustment and spring-mounted impact plates for safety.

Standard Features

• PDK series high-capacity impact crusher
• 3-deck vibrating screen
• Bypass chute and hydraulic folding conveyor
• Hydraulic folding rear and side covers
• Wireless remote control
• PLC control system
• Electric operation
• Grizzly vibrating feeder
• Dust reduction system

Optional Features

• Metal separator magnet
• Hardox lined hopper
• Automatic lubrication system

Technical Specifications

• Capacity: 100 – 250 t/h
• Max. Feed Size: 500 mm
• Feeding Opening: 650 x 1080 mm
• Rotor Diameter: 1200 mm
• Rotor Width: 1000 mm
• Weight: 55000 kg
• Transport Dimensions (L x W x H): 19,520 x 4,100 x 4,560 mm
• Operating Dimensions (L x W x H): 22,650 x 14,690 x 5,820 mm
