Impact crusher BLK02-Emobilecompactfor all materials
Add to favorites
Compare this product
Characteristics
- Technology
- impact
- Mobility
- mobile
- Other characteristics
- high-capacity, primary, secondary, compact, electric, for all materials, rubber-tired
- Capacity
Min.: 150,000 kg/h
(330,693.4 lb/h)Max.: 350,000 kg/h
(771,617.9 lb/h)- Opening height
88 cm
(34.6 in)- Opening lenght
128 cm
(50.4 in)- Weight
68,000 kg
(149,914.34 lb)
Description
Product Overview

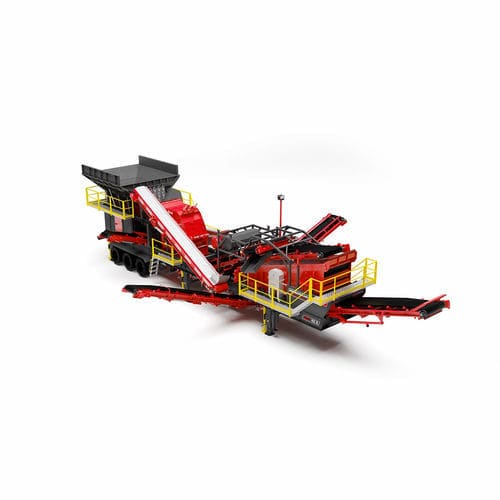

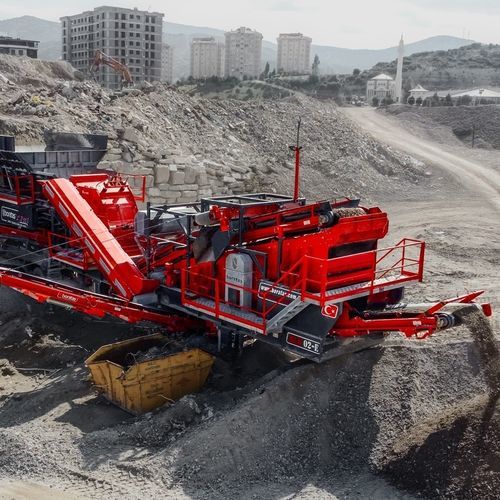

Boratas® wheel-mounted Impact Crusher BLK02-E combines a PDK-series impact crusher and a high-performance vibrating screen on a single chassis to provide a compact, transportable solution for primary and secondary crushing and screening. Designed for recycling, mining and aggregate production, the BLK02-E offers high throughput and precise product sizing in standard or configurable layouts.
Key Characteristics
Standard Features
Optional Features
Specifications
Boratas® wheel-mounted Impact Crusher BLK02-E combines a PDK-series impact crusher and a high-performance vibrating screen on a single chassis to provide a compact, transportable solution for primary and secondary crushing and screening. Designed for recycling, mining and aggregate production, the BLK02-E offers high throughput and precise product sizing in standard or configurable layouts.
Key Characteristics
- Integrated impact crusher and vibrating screen on one chassis for reduced footprint and improved material flow.
- Wheel-mounted, compact design for road transport, fast setup and minimized downtime.
- Versatile crushing: suitable for a wide range of materials and for primary and secondary applications; vibrating screen delivers accurate product gradation.
- Operator-friendly controls, accessible maintenance points and optimized serviceability to increase uptime.
- Safety systems including emergency stop, guards and protection devices.
- Impact crusher details: post-weld stress relief of rotor; replaceable side liners in 16–18% manganese steel; bolted impact plates on a two-part movable body for easy replacement; hydraulic gap adjustment; safety springs on upper and lower impact plates.
Standard Features
- PDK series high-capacity impact crusher
- 3-deck vibrating screen
- Bypass chute and hydraulic folding conveyor
- Hydraulic folding rear and side covers
- Wireless remote control
- PLC control system
- Electric drive
- Grizzly vibrating feeder
- Dust suppression system
Optional Features
- Magnetic metal separator
- Hardox-lined hopper
- Automatic lubrication system
Specifications
- Model: BLK02-E
- Capacity: 150 – 350 t/h
- Maximum feed size: 700 mm
- Feeding opening (W x L): 880 x 1280 mm
- Rotor diameter: 1300 mm
- Rotor width: 1250 mm
- Machine weight: 68,000 kg
- Transport dimensions (L x W x H): 20,350 x 4,400 x 4,700 mm
- Operating dimensions (L x W x H): 23,550 x 15,000 x 5,860 mm
- Crusher liners: replaceable 16–18% manganese steel cast linings
- Crusher gap adjustment: hydraulic system
- Design: wheel-mounted, electric drive, PLC control, wireless remote
