Mining screener BPE102

for recyclingfor crusher loadingvibrating

Overview

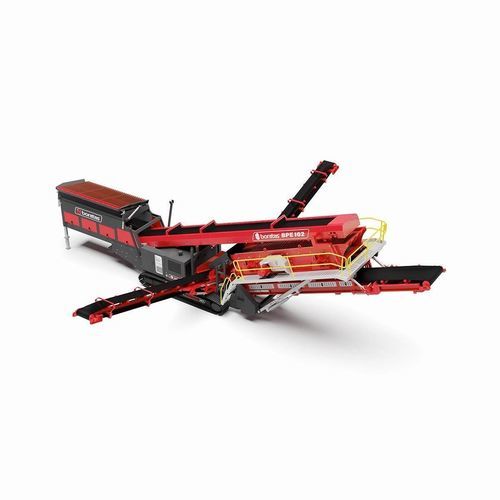

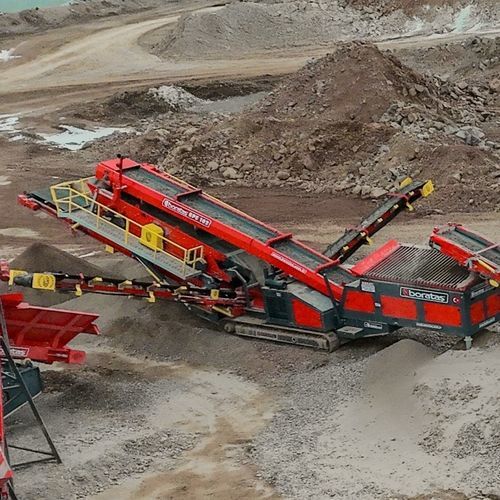

Boratas® Mobile Vibrating Screen BPE102 is a track-mounted, double-deck screening unit engineered for precise material separation in aggregate production, quarrying, mining and recycling applications. The BPE102 is typically fed by a crusher or excavator and integrates easily into multi-stage crushing and screening plants.

Specifications
Decks: 2
Screen size: 1500 x 5000 mm
Power: 110 kVA
Weight: 27,000 kg
Transport length: 17,000 mm
Transport width: 3,500 mm
Transport height: 3,450 mm

BPE102 Characteristics

• Double-deck vibrating screen with adjustable eccentric weights for control of vibration amplitude and screening performance.
• Adjustable parameters: amplitude, frequency and inclination angle to optimize separation for different materials and applications.
• Labyrinth sealing in bearing housings and four vibration dampers to reduce oscillation during start/stop cycles.
• Single-piece plate screen body mounted on eight springs with an expanded-metal maintenance platform for safe access.
• Track-mounted mobility for rapid relocation and on-site setup at material sources.
• Hybrid power options (diesel-electric) or separate diesel/electric drives to match site power availability.

Standard Features

• Double-deck vibrating screen
• Electric or diesel drive system
• Hydraulically folding conveyors
• Independently operable components
• Wireless remote control
• PLC control system
• Drum conveyor motors
• Grizzly feeder hopper
• Lighting arm

Optional Features

• Washing system
• Automatic lubrication system
• Dust suppression system
• Various screen media options

Additional Notes
The BPE102 is designed for low operating costs while maintaining mobility and compact dimensions. It is suitable for integration into multi-stage plants and for standalone screening tasks at remote sites.

Technical specifications

• Model: BPE102
• Decks: 2
• Screen size: 1500 x 5000 mm
• Power: 110 kVA
• Weight: 27,000 kg
• Transport length: 17,000 mm
• Transport width: 3,500 mm
• Transport height: 3,450 mm
• Drive options: Electric or Diesel (hybrid available)
• Screen type: Double-deck vibrating screen with adjustable eccentric weights
• Mounting: Track-mounted mobile unit
• Control: PLC control system and wireless remote control
• Construction details: Labyrinth sealing system in bearing housing, four vibration dampers, single-piece plate body mounted on eight springs, maintenance platform of expanded metal sheets
