Dry screening screener BPE103

constructionfor miningfor recycling

Overview

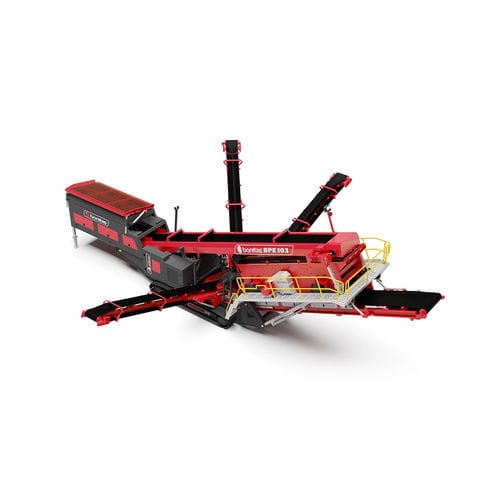

Boratas® Classtrack Series Mobile Vibrating Screen BPE103 is a tracked, triple-deck screening machine designed for aggregate production, quarrying, mining and recycling applications where on-site mobility and compact transport dimensions are required. It is intended to operate as a primary screening stage or within multi-stage processing flows, typically fed by a crusher or excavator.

Specifications
Decks: 3
Screen size: 1500 x 5000 mm
Installed power: 110 kVA
Operating weight: 33,000 kg
Transport length: 17,600 mm
Transport width: 3,500 mm
Transport height: 3,600 mm

BPE103 Characteristics

• Vibration system: powerful eccentric-vibration mechanism with adjustable amplitude and frequency for accurate material separation.
• Screen configuration: interchangeable screen media and adjustable screen angle to suit grading requirements.
• Maintenance access: service platforms and accessible component layout to reduce downtime.
• Mobility: tracked undercarriage for on-site relocation and compact dimensions for transport.
• Power options: diesel, electric or hybrid diesel-electric configuration for flexible deployment.
• Design features: labyrinth-sealed bearing housings, adjustable eccentric weights, four vibration dampers for controlled startup/shutdown and a single-plate screen body mounted on eight springs.

Standard Features

• Triple-deck vibrating screen
• Electric or diesel drive system
• Hydraulically folding conveyors
• Independently operable components
• Wireless remote control
• PLC control system
• Drum conveyor motors
• Grizzly feeder hopper
• Lighting arm

Optional Features

• Washing system
• Automatic lubrication system
• Dust suppression system
• Various screen media options

Product Summary
The BPE103 provides configurable, on-site screening with a triple-deck arrangement and tracked mobility. Its adjustable vibration parameters, hybrid power option and service-oriented design support diverse processing scenarios and simplify operation and maintenance.

Technical Specifications

• Model: BPE103
• Series: Classtrack
• Decks: 3
• Screen size: 1500 x 5000 mm
• Installed power: 110 kVA
• Operating weight: 33,000 kg
• Transport length: 17,600 mm
• Transport width: 3,500 mm
• Transport height: 3,600 mm
• Drive options: Electric or Diesel (hybrid diesel-electric available)
• Control: PLC control system, wireless remote control
• Structure & protection: Labyrinth-sealed bearing housings, expanded-metal maintenance platform, single steel-plate screen body mounted on springs
