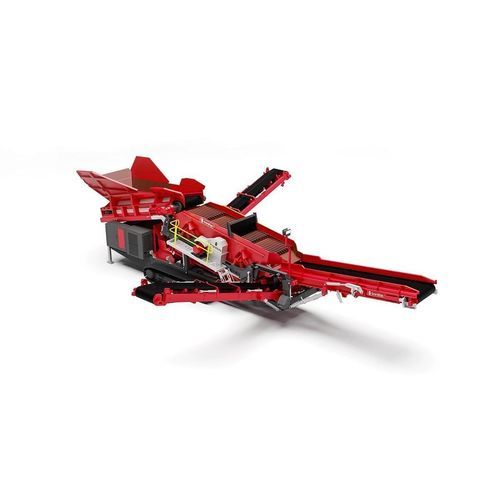

Crusher loading scalper screen BPS101

mobilefor powders2-deck

Overview

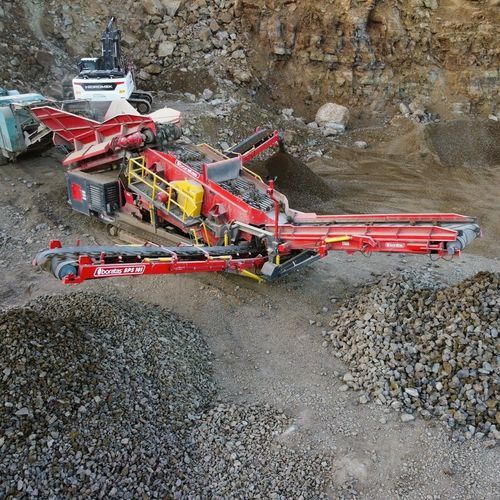

Boratas® Scaltrack Series mobile scalping screen BPS101 provides efficient material classification in a compact, track-mounted unit. Designed for placement between primary and secondary crushers, the BPS101 supports primary scalping and natural sand applications while minimising operating and maintenance costs.

Specifications (from product summary)
Deck: 2
Capacity: 250 - 400 tph
Screen Size: 1,500 x 4,700 mm
Power: 110 kVA
Weight: 34,000 kg
Transport Length: 15,950 mm
Transport Width: 3,200 mm
Transport Height: 3,300 mm

Key Characteristics

• Advanced screening mechanism — separates oversize material before processing to protect downstream equipment and improve throughput.
• High screening capacity — large screen area and optimised deck design enable consistent high throughput.
• Customisable configurations — supports various mesh sizes and deck options (grid, finger bars, hexagonal perforated panels).
• User-friendly access — maintenance and service points are designed for fast intervention and reduced downtime.
• Hybrid (diesel-electric) operation — allows diesel or electric modes to optimise fuel consumption and site requirements.
• Flexible screening media — grid, finger bars, hex panels or optional steel mesh to match material and application.

Standard Features

• 2-deck screening
• Electric or diesel power options
• Hydraulically folding conveyors
• Wireless remote control
• Feeder belt
• PLC control system
• Drum conveyor motors
• Replaceable screen mesh
• Lighting mast

Optional Features

• Apron feeder
• Grizzly screen
• Grizzly flex wire
• Hardox liner plates
• Automatic lubrication system
• Dust reduction system

Technical specifications

• Model: BPS101
• Series: Scaltrack (Mobile Scalping Screen)
• Decks: 2
• Capacity: 250 - 400 tph
• Screen area / Size: 1,500 x 4,700 mm
• Power requirement: 110 kVA
• Operating weight: 34,000 kg
• Transport dimensions (L x W x H): 15,950 mm x 3,200 mm x 3,300 mm
• Drive: Hybrid diesel-electric (optional electric or diesel operation)
• Typical applications: Primary scalping, aggregates, ores, industrial minerals, natural sand
