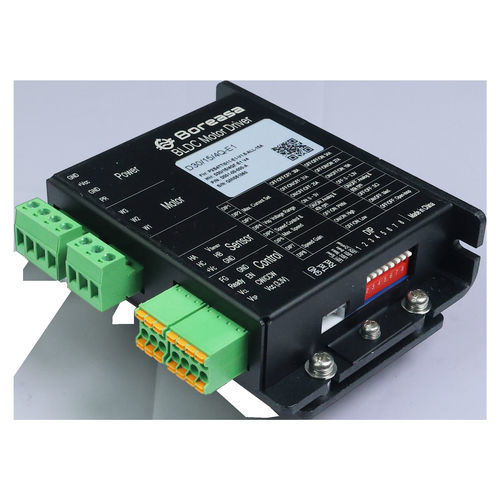

Brushless motor controller D30/15/4Q-E1

compactdigitalclosed-loop

A small 4-quadrant digital controller for the control of brushless motor up to 450 W, equipped with digital hall sensors. Features: - Digital speed control - operates as «closed loop» speed controller - Maximum speed 60,000 rpm (motor with 2 poles) - Set value input through external analogue voltage - Set value input through external PWM 200 Hz - SCI protocol available - Direction of rotation preset by a digital signal - The output stage can be enabled or disabled - Motor speed monitoring via «FG» output - Status indication via «Ready» output - Motor blocked protection (current limit for blocked motor) - Protection: over-voltage, under-voltage, motor block, short-circuit - The built-in shunt regulator is designed to limit the supply voltage of the controller - Compact aluminum housing (110 x 80 x 34 mm) compliant For more information, to receive a spec sheet, to request a quote or to place an order for this driver, please contact your local sales office and describe your application.
