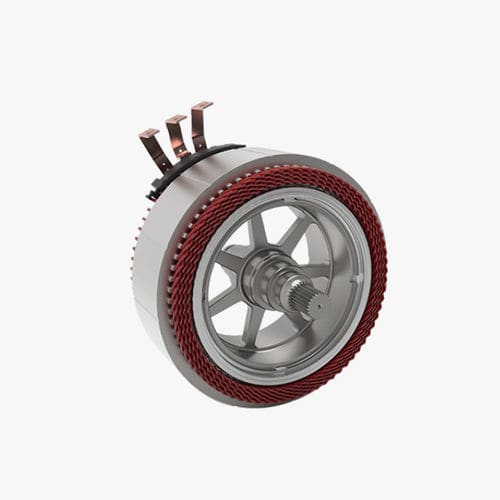

Asynchronous motor 270 DHTACmultipolewater-cooled
Add to favorites
Compare this product
Characteristics
- Type
- asynchronous, AC
- Number of poles
- multipole
- Cooling mechanism
- water-cooled, oil-cooled
- Power
Max.: 80 kW
(108.77 hp)Min.: 40 kW
(54.38 hp)- Torque
Max.: 200 Nm
(147.51243 ft.lb)Min.: 100 Nm
(73.756215 ft.lb)- Rotational speed
6,000 rpm
(37,699.1118 rad.min-1)
Description
The 270 DHT/ Range Extender Dedicated Generator is using the latest hairpin winding technology.
Its structure includes 24 poles, 72 slots, 8 layers/slot and the inner layer is concentric. It cancels the cross line between layers, can easily switch between 2 branches and 4 branches, and eliminate circulation current between the internal branches of the motor, which are conducive to product serialization. The operating voltage range is 300-800V, rated torque range is 100-200Nm, rated power range is 40-80KW, and maximum working speed is 6000rpm.
Cooling methods are water cooling and oil cooling. It can be used in coaxial DHT generator and Range Extender generator.
