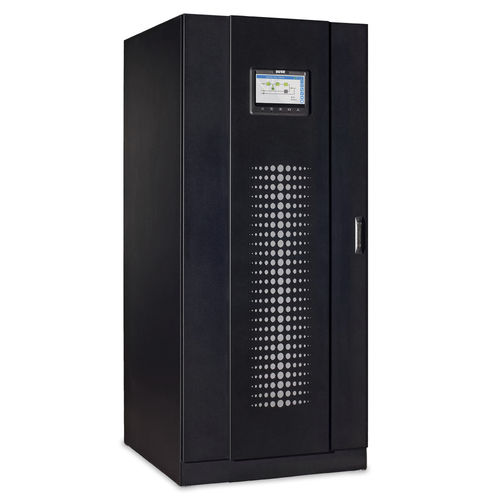

Compact frequency converter Ingenio SFC

3-phasedigitalfloor-standing

Description Borri range of Static Frequency Converters are designed and built for the harshest conditions and to provide high reliable power supply converting 50 Hz supply to 60 Hz equipment and to different voltages. Using state-of-the-art IGBT technology with DSP (Digital Signal Processors) controls we convert the input AC power through a IGBT PFC sine-wave rectifier to DC and then to an AC sine-wave IGBT inverter to produce a full sine-wave output at the new frequency and voltage. Main features • Proven advanced IGBT technology. • Compact design, high power density. • No moving elements - low maintenance. • High reliability and availability. • Precise output frequency generation. • Remote monitoring and control through Ethernet, Modbus TCP/IP protocols. • Flexible in-built features. • Optional operation with battery. • Highly customizable. • Easy maintenance and serviceability. Features • Internal input and output switches. • 8 potential free contacts fault remote alarm. • Power and control cable markings. • Halogen free cable. • Component markings. • Bottom cable entry. • Advanced Multi-functional LCD panel.
