CNC milling-turning center T4H
horizontal3-axisspindle

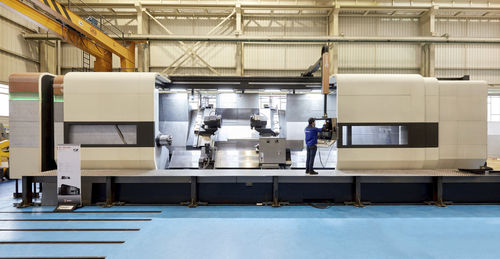

CNC milling-turning center - T4H - Bost Machine Tools Company S.L.U - horizontal / 3-axis / spindle
CNC milling-turning center - T4H - Bost Machine Tools Company S.L.U - horizontal / 3-axis / spindle
CNC milling-turning center - T4H - Bost Machine Tools Company S.L.U - horizontal / 3-axis / spindle - image - 2
CNC milling-turning center - T4H - Bost Machine Tools Company S.L.U - horizontal / 3-axis / spindle - image - 3
CNC milling-turning center - T4H - Bost Machine Tools Company S.L.U - horizontal / 3-axis / spindle - image - 4
Add to favorites
Compare this product

Characteristics

Control type
CNC
Type
horizontal
Number of axes
3-axis
Structure
spindle
Other characteristics
hydrostatic
Diameter

Max.: 3,500 µm

Min.: 1,500 µm

X travel

1,000 mm, 1,200 mm, 1,500 mm
(39.37 in, 47.24 in, 59.06 in)

Y travel

1,400 mm, 1,800 mm, 2,200 mm, 2,700 mm, 3,200 mm
(55.12 in, 70.87 in, 86.61 in, 106.3 in, 125.98 in)

Spindle power

Max.: 230 kW
(312.71 hp)

Min.: 37 kW
(50.31 hp)

Spindle speed

Max.: 4,500 rpm
(28,274.334 rad.min-1)

Min.: 130 rpm
(816.814 rad.min-1)

Description

Maximum centre-to-centre working distance - mm - 4.000 – 30.000 Maximum weight of part between centres - Kg - 12.000 – 150.000 Headstock Power S1(100%) Turning mode - Nm 37.700– 604.000; Millling capacity S1(100%) - Nm 1.410 – 13.200 Control - Siemens
