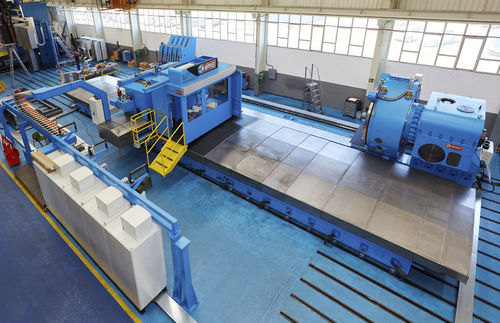

CNC turning-milling center AR90horizontal
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Type
- horizontal
- Diameter
1,300 cm
(511.81 in)- Spindle power
108 kW, 190 kW
(146.84 hp, 258.33 hp)- Spindle speed
Max.: 30 rpm
(188.496 rad.min-1)Min.: 2.5 rpm
(15.708 rad.min-1)
Description
Maximum centre-to-centre working distance - mm - 15.000
Maximum weight of part between centres - Kg - 320.000
Combined Power for piece rotation S1(100%) -
Nm 420.000
Millling capacity S1(100%) -
Nm 122.900
Steady rest diameter range (Standards)(Option) - mm - +240 / +430 mm
Steady rest diameter range (Large one) (Option) - mm - +300 / +540 mm
Control - Siemens
