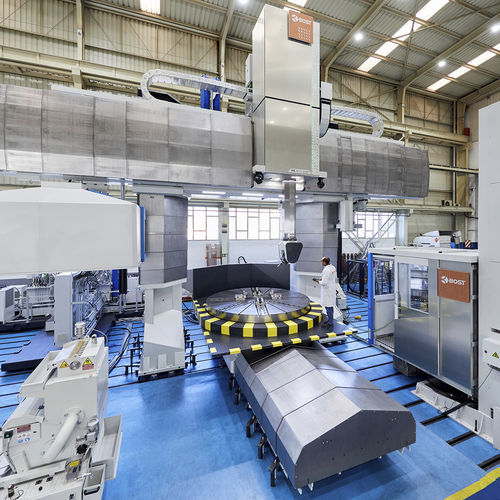

CNC lathe VTL CYverticalwith moving tablemilling
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Spindle orientation
- vertical
- Structure
- with moving table
- Associated function
- milling, grinding, drilling
- Options and accessories
- with integrated pallet changer
- Diameter
Min.: 1,000 mm
(39.37 in)Max.: 10,000 mm
(393.7 in)- Spindle speed
Min.: 40 rpm
(251.327 rad.min-1)Max.: 400 rpm
(2,513.274 rad.min-1)- Nominal power
30 kW, 37 kW, 82 kW, 131 kW
(40.8 hp, 50.3 hp, 111.5 hp, 178.1 hp)- Maximum torque
12,000 Nm, 1,000,000 Nm
(8,851 ft.lb, 737,562 ft.lb)
Description
Table diameter - mm - 1.000 – 8.000
Max. Load - kg - 1.000 - 350.000
Table stroke - mm - -/+500 - +/- 5.000
Turning Height - mm - 1.000 – 8.000
RAM cross section - mm - 310X310 – 500x500
RAM Stroke - mm - 1.000 – 3.500
ATC/AAC - Disc / Chain /Robot
Enclosure - Peripheral / Full
Control - Siemens / Fanuc
