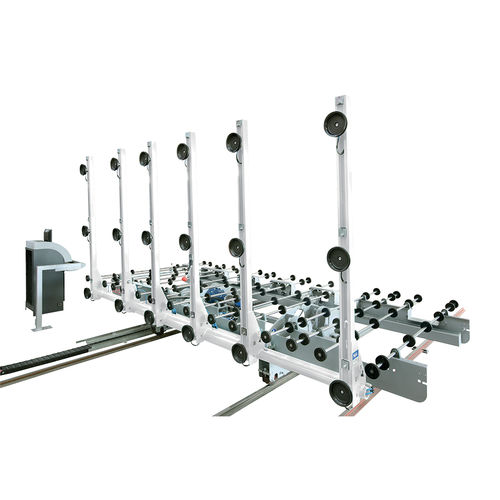

Loading system 6 series

These machines are recognized worldwide for their high degree of flexibility, reliability and ease of use. They can handle glass from 2 up to 25 mm with a glass depth of 1200 mm. Unique system for glass detachment pneumatically assisted. The arm movements are mechanically actuated. The loaders are available in the following configurations, transversally or longitudinally mobile: • 620 single side loader • 630 double side loader • 640 combined double side loader. A standard machine that can manage non-standard applications. Technical specifications Glass thickness 2 ÷ 19 mm Optional glass thickness 2 ÷ 25 mm Max glass size 6100 x 3300 mm 3650 x 2750 mm Rack depht 1200 mm
