Storage warehouse rack system 636

with shelvesshuttlefor heavy loads

Product description

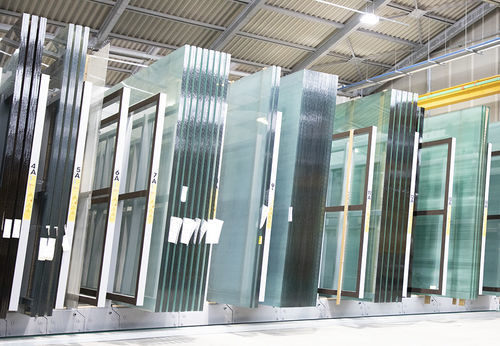

Reliable and practical stand-alone, or automated overhead loader integrated warehouse systems. Every rack system is composed of one fixed rack, one motorized rack, whereas the following are movable racks. Rack opening and closing can be handled manually through pedal or in semiautomatic mode through PLC, by mean of a user friendly touch screen operator interface. The hydraulic handling system improves the movement of empty and loaded racks, providing a high degree of control over acceleration and deceleration forces. Furthermore with the option “integrated warehouse management” the rack system is equipped with an additional PC containing one single warehouse database, which is online connected to optimization office.

Features

• Stand-alone or automated overhead loader integrated warehouse systems

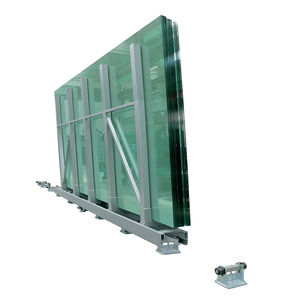

• Composed of one fixed rack and one motorized rack; other racks are movable
• Rack opening/closing: manual (pedal) or semiautomatic (PLC) via touch screen operator interface
• Hydraulic handling system for controlled movement of empty and loaded racks (control of acceleration and deceleration)
• Optional integrated warehouse management: additional PC with single warehouse database connected online to optimization office

Technical specifications
Max glass size: 6100 mm (7000 mm) x 3300 mm / 3650 x 2750 mm
Glass pack thickness: Fixed rack 300 ÷ 800 mm; Movable rack 140 ÷ 800 mm
Max weight: Fixed rack 12 ÷ 30 ton / 5 ÷ 14 ton; Movable rack 5 ÷ 30 ton / 2,5 ÷ 14 ton

Caractéristiques / Spécifications techniques

• Max glass size: 6100 mm (7000 mm) x 3300 mm
• Alternate max glass size: 3650 x 2750 mm
• Glass pack thickness (Fixed rack): 300 ÷ 800 mm
• Glass pack thickness (Movable rack): 140 ÷ 800 mm
• Max weight (Fixed rack): 12 ÷ 30 ton; alternative 5 ÷ 14 ton
• Max weight (Movable rack): 5 ÷ 30 ton; alternative 2,5 ÷ 14 ton
