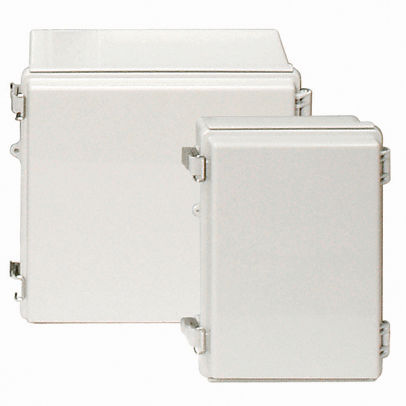

Wall-mount enclosure BC-ATP-131508rectangularplasticfor controllers
Add to favorites
Compare this product
Characteristics
- Construction
- wall-mount
- Configuration
- rectangular
- Material
- plastic
- Application
- for controllers
- Protection level
- waterproof, IK 07, IK 08, IP66, IP67
- Width
135 mm
(5.3 in)- Height
155 mm
(6.1 in)- Depth
85 mm
(3.35 in)
Description
1. BOXCO control box is designed to prevent the penetration of rain and dust perfectly as roof is protruded from top and bottom of the base.
2. Our enclosures are easy to separate cover and base so that user can assemble enclosure for machining or printing.
3. Hinge is integrated with enclosure and main parts of draw latch are made of stainless steel to be solid.
4. Hinge connecting pins and draw latch are made of stainless steel and plastic to prevent rust.
Level of dustproof and waterproofIP 66/67
Impact testIK 07/08
Temperature rangeABS : - 40 ~ + 70 │ Polycarbonate(PC) : - 40 ~ + 110
Flammability RatingABS : 94-HB │ Polycarbonate(PC) : 94-V-0, 5VA, HB
