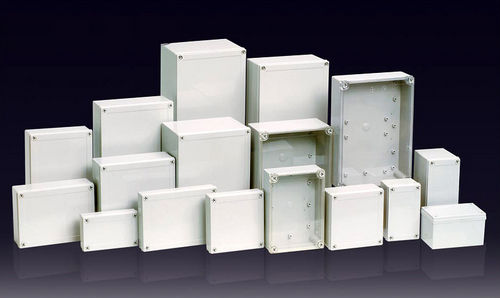

Handheld enclosure M series rectangularplasticfor general purposes
Add to favorites
Compare this product
Characteristics
- Construction
- handheld
- Configuration
- rectangular
- Material
- plastic
- Application
- for general purposes
- Other characteristics
- screw cover
- Width
Max.: 380 mm
(15 in)Min.: 50 mm
(2 in)- Height
Max.: 180 mm
(7.1 in)Min.: 45 mm
(1.8 in)
Description
1. Considering attachment of membrane keypad, this M series enclosure is designed to make center surface of the cover slightly lower.
2. Our enclosure's screw thread of the base for connecting cover is molded so that it has sufficient strength and not broken when tightening screw.
3. Our non metallic enclosure's cover is low and base is high so that it has beautiful appearance.
Level of dustproof and waterproofIP 66/67
Impact testIK 07/08
Temperature rangeABS : - 40 ~ + 70 │ Polycarbonate(PC) : - 40 ~ + 110
Flammability RatingABS : 94-HB │ Polycarbonate(PC) : 94-V-0, 5VA, HB
