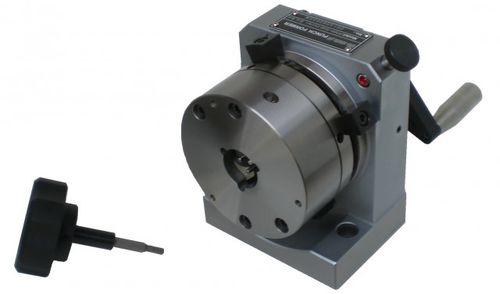

Key type workpiece clamping chuck 40.13S.B40grindinghigh-precision3-jaw
Add to favorites
Compare this product
Characteristics
- Clamping method
- key type
- Application
- grinding
- Other characteristics
- high-precision
- Number of jaws
- 3-jaw
Description
Heavy duty construction
Innovative
Safe
Effective
. Tool steel. All hardened and precision ground parts.
. Double bearing for maximum accuracy and stability,
. 15 degree pitch: by +/- 30 seconds
. Shaft height 85 mm +/- 0.5 mm
. Through Hole: 25 mm
. Concentricity: 0.003 mm
B40: with collets
Tensionable diameter 1-25 mm
B04: 3-jaw chuck
Tensionable diameter 3-32 mm
Use :
Grinding
metrology
Punch former
