Key type workpiece clamping chuck 40.13S.B04grindingprecision3-jaw
Add to favorites
Compare this product
Characteristics
- Clamping method
- key type
- Application
- grinding
- Other characteristics
- precision
- Number of jaws
- 3-jaw
Description

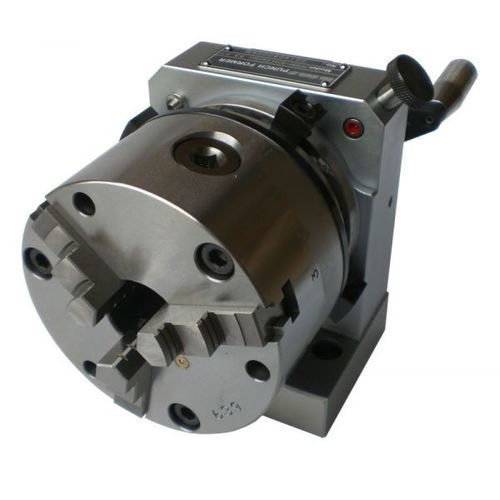

Punch former with 3 jaw chuck type AER/M85 B04
Heavy duty constructionInnovativeSafeEffective
. Tool steel. All hardened and precision ground parts.
. Double bearing for maximum accuracy and stability,
. 15 degree pitch: by +/- 30 seconds
. Shaft height 85 mm +/- 0.5 mm
. Through Hole: 25 mm
. Concentricity: 0.003 mm
B40: with collets
Tensionable diameter 1-25 mm
B04: 3-jaw chuck
Tensionable diameter 3-32 mm
Use :GrindingmetrologyPunch former
