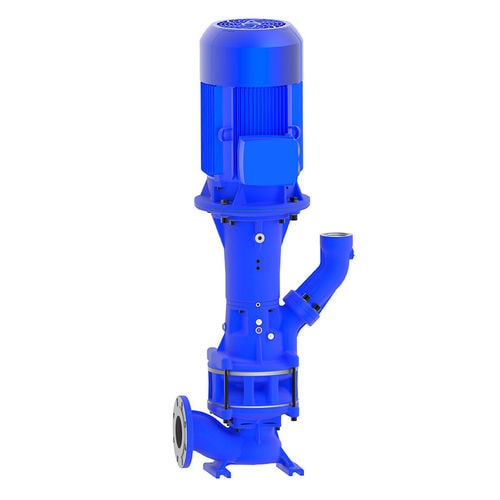

Coolant pump SBA1600...2002-V series
for lubricantselectriccentrifugal

coolant pump
coolant pump
Add to favorites
Compare this product


Characteristics

Fluid
for coolant, for lubricants
Operation
electric
Technology
centrifugal
Domain
industrial, for the metallurgical industry, for machine tools
Applications
cooling, for emulsions
Fluid specification
cutting fluid
Other characteristics
compact, with mechanical seals, suction, close-coupled, in-line, small, flange, radial, axial, vertical-mount
Flow

Min.: 0 l/min
(0 us gal/min)

Max.: 2,000 l/min
(528.3441 us gal/min)

Head

Min.: 0 m
(0'00" )

Max.: 37 m
(121'04" )

Power

Min.: 9 kW
(12.24 hp)

Max.: 12.6 kW
(17.13 hp)

Description

Vertical End Suction Pumps are centrifugal inline pumps with a compact design where the impeller is mounted onto the extended motor shaft. These pumps are not self-priming and must be gravity fed. All pumps are equipped with double mechanical seal. This pump series is designed for vertical installations next to a tank and for pumping air entrained coolant fluids, such as water-soluble coolants or cutting oils, as they occur in high speed turning, milling or grinding applications. The SBA pumps are equipped with the user-friendly 45 degree flange connection which allows for either vertical or horizontal pipe connection and the connection of a pressure gauge with G ¼. For more information see mechanical features within the technical information section. Applications Types of fluid - - coolants cooling/cutting oils - Kinematic viscosity - - ...45 mm²/s (45 cSt) - Pumping temperature - - 0...80° C Construction Pump body - - cast iron Cover - - cast iron Impeller axial - - cast steel Impeller radial - - cast steel Shaft - - steel Mechanical seal - - SiC - - Noise level - - 74 dBA (SBA1600-V...SBA2000-V) 78 dBA (SBA1602-V...SBA2002-V)
