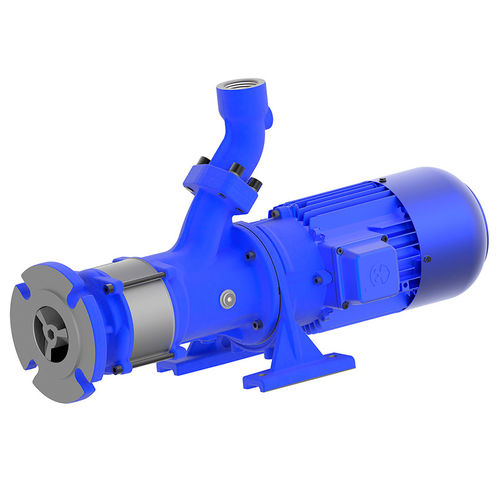

Coolant pump SBG501...503 series
for lubricantselectriccentrifugal

coolant pump
coolant pump
Add to favorites
Compare this product


Characteristics

Fluid
for coolant, for lubricants
Operation
electric
Technology
centrifugal
Domain
industrial, for the metallurgical industry, for machine tools
Applications
cooling, for emulsions
Fluid specification
cutting fluid
Other characteristics
multi-stage, compact, horizontal mount, with mechanical seals, suction, close-coupled, in-line, small, radial, axial, grinding oil, vertical, low-pressure
Flow

Max.: 450 l/min
(118.87742 us gal/min)

Min.: 0 l/min
(0 us gal/min)

Head

Max.: 38 m
(124'08" )

Min.: 0 m
(0'00" )

Power

Max.: 3.8 kW
(5.17 hp)

Min.: 1.1 kW
(1.5 hp)

Description

Horizontal End-Suction Pumps are centrifugal inline pumps with a compact design where the impeller is mounted onto the extended motor shaft. These pumps are not self-priming and must be gravity fed. All pumps are equipped with a single mechanical seal. Upon request a second mechanical seal is available to allow for dry-running (-GD). This pump series is designed for horizontal installations next to a tank and for pumping highly air entrained coolant and cutting oils, as they occur in high speed grinding applications. The SBG pumps are equipped with the user-friendly SAE flange connection which allows for either vertical or horizontal pipe connection and the connection of a pressure gauge with G 1/4. Applications Types of fluid - - coolants cooling/cutting oils grinding oils - Kinematic viscosity - - ...45 mm²/s (45 cSt) - Pumping temperature - - 0...80° C - Construction Pump body - - cast iron Cover - - cast iron Impeller axial - - cast steel Impeller radial - - cast steel Shaft - - steel Mechanical seal - - SiC - - Noise level - - 67 dBA (SBG501) 70 dBA (SBG502) 72 dBA (SBG503)
