Coolant pump SZG series
centrifugalfor lubricantselectric

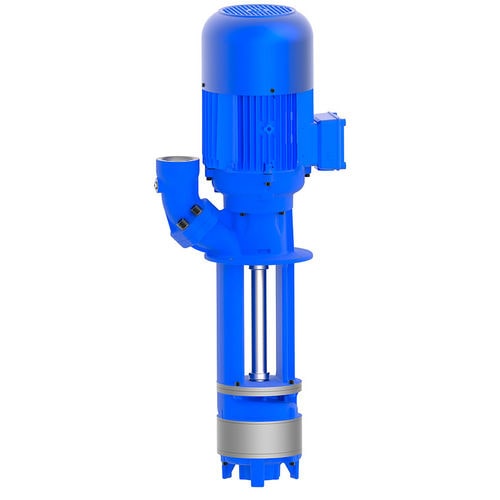

Coolant pump - SZG series - Brinkmann Pumpen - centrifugal / for lubricants / electric
Coolant pump - SZG series - Brinkmann Pumpen - centrifugal / for lubricants / electric
Add to favorites
Compare this product
Go to the Brinkmann Pumpen website for more information

Characteristics

Technology
centrifugal
Fluid
for coolant, for lubricants
Operation
electric
Priming
semi-submersible
Mobility
stationary
Domain
industrial, for the metallurgical industry, for machine tools
Applications
cooling, for emulsions
Material
cast iron, steel, cast steel
Fluid specification
cutting fluid, for refrigerant fluids
Voltage
380 V, 460 V
Flow

Max.: 800 l/min
(211.33764 us gal/min)

300 l/min, 500 l/min
(79.25162 us gal/min, 132.08603 us gal/min)

Min.: 0 l/min
(0 us gal/min)

Head

Max.: 47 m
(154'02" )

15 m, 29 m, 30 m
(49'02" , 95'01" , 98'05" )

Min.: 0 m
(0'00" )

Power

Max.: 10.3 kW
(14 hp)

Min.: 3.3 kW
(4.49 hp)

Height

503 mm, 533 mm, 612 mm
(19.8 in, 20.98 in, 24.09 in)

Weight

Max.: 149 kg
(328.49 lb)

Min.: 66 kg
(145.51 lb)

Description

Quick Suctioning Immersion Pumps series SZG equipped with the patented "BRINKMANN`s Suction De-aeration System" are excellently suited to pumping fluids (grinding oils) with very high air entrainment as they occur in high-speed grinding. The quick suctioning immersion pumps reach stable working conditions as soon as the liquid level reaches the suction inlet. The SZG serie offers a flange with pressure gauge connection port. The flange can be rotated for either horizontal or vertical pipe connections.
