Centrifugal pump SAL1001...1006 series
for coolantfor lubricantselectric

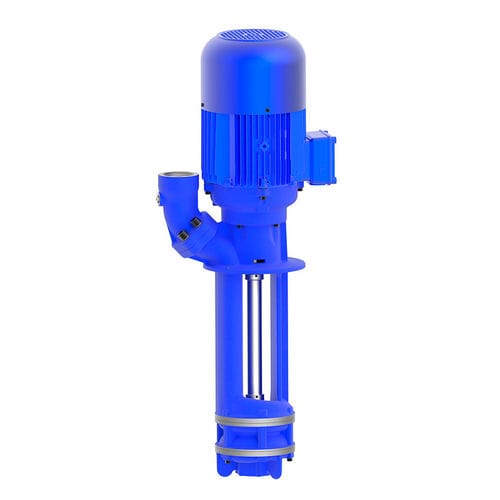

Centrifugal pump - SAL1001...1006 series - Brinkmann Pumpen - for coolant / for lubricants / electric
Centrifugal pump - SAL1001...1006 series - Brinkmann Pumpen - for coolant / for lubricants / electric
Add to favorites
Compare this product
Go to the Brinkmann Pumpen website for more information

Characteristics

Technology
centrifugal
Fluid
for coolant, for lubricants
Operation
electric
Priming
semi-submersible
Mobility
stationary
Domain
industrial, for the metallurgical industry, for machine tools
Applications
cooling, for emulsions, suction
Material
cast iron, steel, cast steel
Fluid specification
cutting fluid, for refrigerant fluids
Voltage
380 V, 460 V
Other characteristics
multi-stage, flange, low-pressure, vertical-mount, slurp
Flow

Min.: 0 l/min
(0 us gal/min)

Max.: 1,450 l/min
(383.04948 us gal/min)

Head

Min.: 0 m
(0'00" )

Max.: 115 m
(377'03" )

Power

Min.: 3.3 kW
(4.49 hp)

Max.: 21.3 kW
(28.96 hp)

Height

503 mm, 574 mm, 612 mm, 620 mm, 974 mm
(19.8 in, 22.6 in, 24.09 in, 24.41 in, 38.35 in)

Weight

Min.: 64 kg
(141.1 lb)

Max.: 215 kg
(473.99 lb)

Description

Quick suctioning immersion pumps equipped with the patented "BRINKMANN`s Suction De-aeration System" are excellently suited to pumping extremely inflated fluids (emulsions resp. cooling/cutting oils) as they occur in heavy cutting when turning, milling or grinding. The quick suctioning immersion pumps reach stable working conditions as soon as the liquid level reaches the suction inlet. The SAL serie offers a flange with pressure gauge connection port. The flange can be rotated for either horizontal or vertical pipe connections. Applications Types of fluid - - coolants cooling/cutting oils - Kinematic viscosity - - ...45 mm²/s (45 cSt) - Pumping temperature - - 0...80° C Construction Pump body - - cast iron Cover - - cast iron Impeller axial - - cast steel Impeller radial - - cast steel Shaft - - steel
