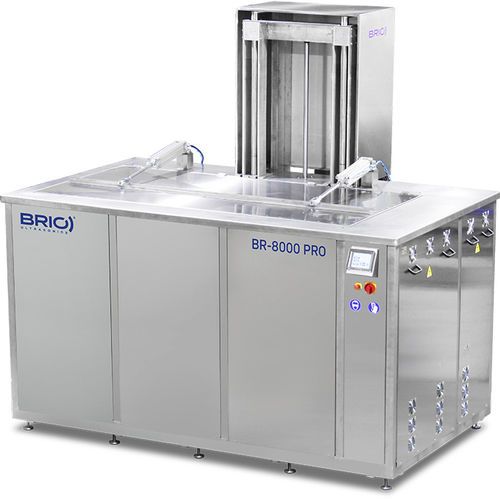

Ultrasonic cleaning machine BR-8000 PRO

automaticmanualindustrial

Exterior dimensions of the machine - 4.120×3.400×3.640 mm Interior dimensions of the vat - 2.800×1.900×1.623 mm Useful measurements of the load grid - 2.750×1.800×1.335 mm Height of the worktop - 1.950 mm Capacity of the vat - 8.634 L Power of the ultrasonic generator - 25000 W (50000 W p-p) Ultrasonic working frequency - 28/40 kHz Heating element - 63 kW Elevator with parts grid. Max. load capacity - 2000 – 7500 kg Auxiliary vat capacity - 425 L Intuitive 7 inch color touch panel. To control and program the cleaning cycle. Manual and automatic mode. Includes time slot programming. System with PLC and temperature module. Oil Push System. Exclusive system for oil removal to the auxiliary vat by laminar sweep. It extends the useful life of the fluid against saturation. Elevator sway. Up and down movement for the separation of the dirt released on the surface of the parts. Automatic lid with thermal insulation as an option. Stainless steel construction AISI 304/316. Automatic ultrasonic cleaning equipment of 8000 L useful capacity. Exclusive BRIO technology three times more efficient than conventional systems.
