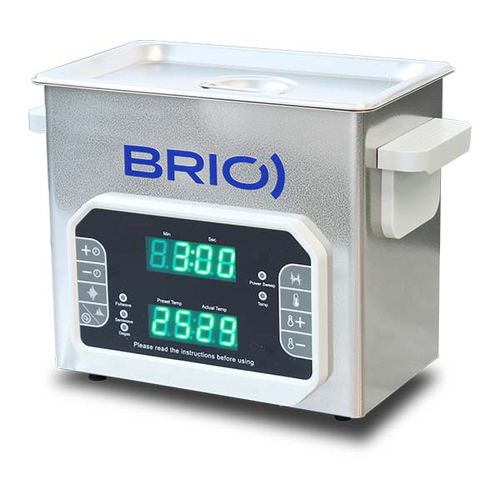

Ultrasonic part washer BR-3 Lab Plus

manual

External dimensions of the machine - 270 x 170 x 240 mm Internal dimensions of the tank - 240 x 140 x 100 mm Useful measurements of the work basket - 210 x 120 x 70 mm Tank capacity - 3,2 L Ultrasonic generator power - 120 W (240 W p-p) Working frequencies of ultrasound - 40/33 kHz Heating power - 100 W Analogue control panel with digital thermostat for temperature control Cover made of AISI 304 “end of day”. Drain valve made of stainless steel. Work basket included. Made of AISI 304 stainless steel. Construction in AISI 304/316 stainless steel Manual tabletop ultrasonic cleaning equipment. 3 L capacity. Exclusive BRIO technology with dual frequency and functions that enhance the cleaning cycle. Machine designed for the research, medicine, veterinary, jewelry, etc. sectors. work at 40 and 33 kHz. - 1. 40 Khz: The most suitable frequency for light dirt, with application in laboratories, the medical sector, optics, watchmaking, etc. 2. 33 kHz: This frequency provides greater cleaning intensity, and is more suitable for removing dirt strongly adhered to the parts. Stop & Go bi-frequency - Intermittent operation at 40/33 kHz with intermediate pauses. This function subjects the parts to variable pulses of ultrasonic vibration, allowing better removal of dirt present in cavities and other hard-to-reach places. Frequency sweep function. - Progressive variation from one frequency to another. This variation allows a progressive change in cleaning intensity that favors the removal of dirt. Ultrasonic work timer. - Allows you to set a working time between 1 and 99 minutes. Integrated digital thermostat. - Allows you to set the equipment’s working temperature up to 80 ºC.
