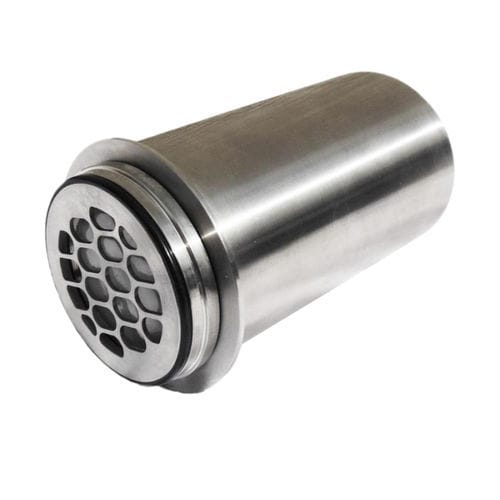

In-line carbon dioxide sensor CarboCheck

dissolved CO2hygienicdigital

As leading carbon dioxide monitor & control system, CarboCheck uses the well known saturation pressure / temperature technique for accurate, non - sampling measurement. CarboCheck can be used for measurement alone or configured as a control system. The CarboCheck sensor features a silicone rubber membrane, through which the dissolved CO2 permeates into a sealed, evacuated chamber. The partial pressure of the gas is then measured and CO2 content is displayed on the control unit. This system incorporates a vacuum exhauster to regularly evacuate the sensor, providing continual, accurate measurement of dissolved CO2. The analyser / control unit can be linked to a carbonation system to enable fully integrated CO2 measurement, injection and control. • Accurate to +/- 0.02 vol/vol (+/- 0.04 g/l) • No sampling or products by-pass lines • Hygienic fitting, can be cleaned in place • Low maintenance requirement • Available as single / dual channel controller or up to 4 • channel monitor • Measurement and compensation for the effect of O2 and N2 • Discrete calibration for different products • Remote start / stop control
