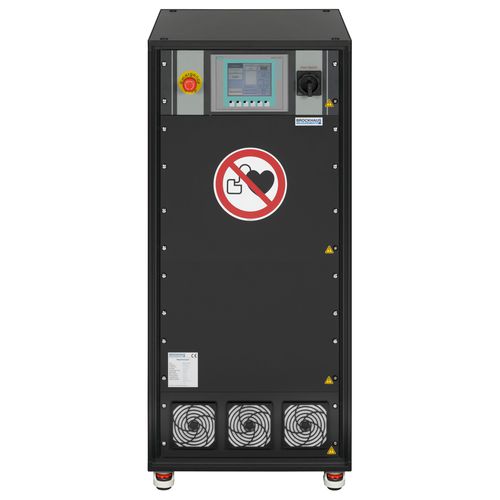

Magnetizer MAG 2000

•Energy: 600 W – 30 kW •Metal paper capacitor •Maximum 2000 V •Maximum 35000 A •Modular construction •Measurement of pulse current •Current display and monitoring of the magnetizing current •LCD display (illuminated) •Clear user commands •Dust-resistant plastic foil keypad •Potential-free serial interface •Potential-free inputs and outputs for connecting to external controls •Various categories of housing protection/insulation •Temperature measurement of the magnetizing device •Self-testing with safety control (comprehensive safety functions) •Software updates via serial interface •Switching of different capacities possible (optional) •Manual or automatic selection of magnetizing pulse •External foot- or hand-operated switch •Magnetizing devices with standard dimensions (selection of axial coils) •Custom-made magnetizing devices •Connection of measuring instruments such as Gaussmeters and fluxmeters Operating principles The MAG series measuring instruments enable the magnetization, adjustment and demagnetisation of all anisotropic and isotropic magnetic materials in all usual sizes. In particular it is possible to magnetize all highly coercive magnetic materials such as Sm2Co17 or plastic composite NdFeB magnets easily and with short pulse intervals. Raw magnets as well as complete workpieces can be magnetized with the magnets integrated into these units. The systems are suitable for three-shift application in automated production and for use at individual hand-operated workbenches.
