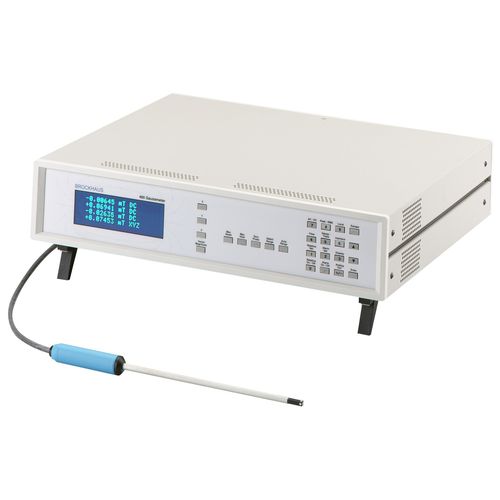

• Three-channel Gaussmeter for determining the magnetic field strength of permanent magnets and systems
• Measurement of magnetizing pulses
• User-friendly measuring instrument
• Mains supply
• Application in laboratories and in production lines
• Field and temperature measurement via the probe input
• Automatic temperature compensation
• Application as a single-, two- or three-channel Gaussmeter
• Three-channel Gaussmeter for determining the magnetic field strength of permanent magnets and systems
• Measurement of magnetizing pulses
• User-friendly measuring instrument
• Mains supply
• Application in laboratories and in production lines
• Field and temperature measurement via the probe input
• Automatic temperature compensation
• Application as a single-, two- or three-channel Gaussmeter
Operating principle
Multi-channel Gaussmeter with a resolution of 5 3/4 digits. Up to a maximum of three probes can be connected simultaneously. Each measuring channel is shown in one line in the display. Measurement of Hall voltage created in the Hall sensor which is proportional to the adjacent magnetic field.
All the functions are displayed and controlled via the front panel of the instrument. Input via keyboard, readings on a 4-line fluorescent display with alphanumerical text. Measuring range, zero, and functions such as max hold, relative or alarm, can be set individually for each channel.
Two analogue outputs provide high accuracy and the possibility to analyse the development of the field. The corrected analogue output shows the exact value displayed, the non-corrected analogue output shows the field strength in real time.
