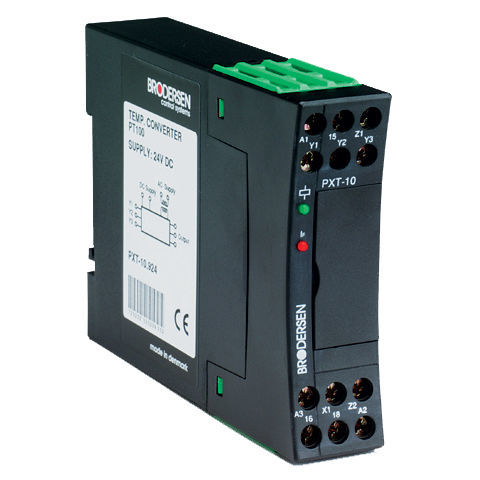

Temperature converter PXT-20

analog4-20 mADIN rail

Temperature converter for converting a temperature to an analogue process signal. The temperature converter has an Pt100 input in two ranges -50-300°C and -50-100°C. A typical application is where temperature measurement is required and when a PLC/Controller only has analogue inputs. The temperature range for input and type of analogue output are selected via choice of terminal - see connection diagram. Features • Pt100 probe input with/without compensation for cable resistance in two ranges -50 to 300°C and -50-100°C . • Output 0-10VDC/2-10VDC/0-20/4-20mA - selected via terminals. • Output offset and gain adjustable ±5%. • LED indication of input less than 5%. • Galvanic isolation supply/input/output of 3,75kV AC 1 min. • Operating voltage 12-48VAC/DC, 115-230VAC.
