Overview

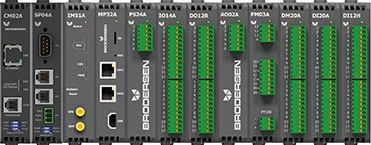

Configure RTU32 systems by selecting CPU, power supply and I/O modules. Communication interfaces include 2 x Ethernet and USB; CPU options scale by software across performance ranges. The configurator supports incremental licensing: add CPU speed, drivers, RAM or I/Os later as needed.

RTU32N Overview
RTU32N available with or without embedded I/Os. Communication interfaces: 2 x Ethernet, 4 x COM ports and 2 x USB. Integrated I/Os expandable via Brodersen LocalBus. Includes power supply monitoring on applicable variants.

CPU variants

• MP32A Standard with USB A connector
• MP32A_REV_B with USB M8 connector
• MP32A_REV_C with RS232/RS485 and M8 connector
• MP32A_REV_D 900/1800 MHz with USB M8 connector
• MP32A_REV_E 900/1800 MHz with M8 as RS232/485

Power supply options
RTUM PS Type: 10-30 VDC
RTUM PS Type: 20-60 VDC
RTUM PS Type: 60-150 VDC
RTUN PS Type: 10-30 VDC
RTUN PS Type: 30-60 VDC

I/O variants & analog types

• 28 I/O (16 DI, 8 DO, 4 AI)
• 42 I/O (20 DI, 8 DO, 8 DIO, 6 AI)
• Basic without I/O and display

Analog input options: Voltage or Current

Redundancy variants

• R1 — Redundant CPUs with identical redundant I/Os; CPUs connected using CM02A device and cables.
• R2 — Redundant CPUs with shared I/Os; CPUs placed adjacent and connected via RL02A (REDLINK). Requires a CPU variant with a USB connector.
• R3 — Redundant CPUs with shared I/Os located between the CPUs; connection via CM02A device and cables.

Performance options and protocols
Optional items (drivers, CPU speed, RAM, I/Os) are enabled by RTU license. Select minimum options now and acquire additional licenses later. Note: some feature options are not license-upgradable.

I/O selection and backplane
Integrated I/Os and expansion via Brodersen LocalBus (LB2). Configurator performs LB2 I/O bus power calculation and block sizing during selection.

Bill of materials and file export
Configurator generates a Bill of Materials (BOM) that can be saved or exported in CSV (comma or semicolon separated). Saved BOMs can be reloaded for repeat configurations.

Technical specifications

• Product family: RTU32 series
• Interfaces (RTU32M): 2 x Ethernet, USB (additional USB/COM depending on CPU)
• Interfaces (RTU32N): 2 x Ethernet, 4 x COM ports, 2 x USB
• CPU options: software-scalable ranges approx. 200–900 MHz and 900–1800 MHz (multiple MP32A revisions)
• I/O configurations: 28 I/O (16 DI, 8 DO, 4 AI); 42 I/O (20 DI, 8 DO, 8 DIO, 6 AI); Basic without I/O/display
• Analog input selectable as Voltage or Current
• Power supply ranges: 10–30 VDC, 20–60 VDC, 30–60 VDC, 60–150 VDC (variant-dependent)
• Redundancy types: R1, R2 (REDLINK), R3
• I/O expansion: Brodersen LocalBus (LB2) with power calculation and block sizing
• Licensing: fieldbus/protocol drivers and performance options controlled by license
• Configurator features: BOM export (CSV), saved BOM load, configurable CPU, power and I/O selection
• Includes power supply monitoring on applicable variants
