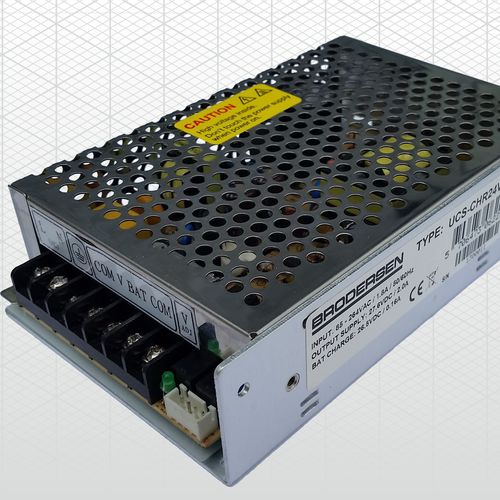

AC/DC power supply UCS-CHR series

AC/DC power supply
AC/DC power supply
Add to favorites
Compare this product


dual-output, adjustable
DIN rail
Input voltage

Min.: 85 V

Max.: 370 V

Output voltage

12 V, 24 V


0.16 A, 0.23 A, 0.5 A


55 W, 155 W


UCS-CHR Series Combined Charger and Power Supply UCS-CHR series is a combined charger and power supply with dedicated outputs for both charging and power supply. With a large input range 85~264VAC/ 120~370 VDC the series suits most applications requiring a combined power supply and charger in a small form factor. There are two different output types 12VDC or 24VDC with a range from 55 Watt to 155 Watt. UCS-CHR series charges by floating charge. Floating charge enables the power supply to determine where the watts are required instead of a fixed ratio between power supply and charger. When mains power fails UCS-CHR automatically switches to feed the application with battery supply uninterrupted. (UPS function). UCS-CHR has two relay out for mains missing & Battery low. The potential free relays are closed when no failure (fail safe). UCS-CHR series can be backplane mounted or on DIN rail. Features: Adjustable Voltage Range Output Overload Protection Short Circuit Protection with auto recovery Battery Reverse Connection Indication Battery Low Voltage Protection AC mains failure relay Battery low failure relay
