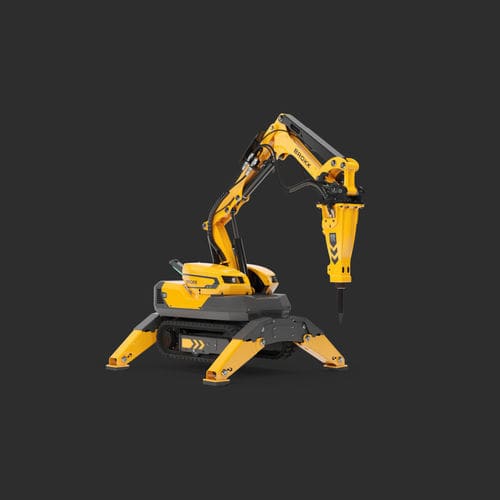

Remote-controlled demolition robot Brokk 130⁺

compact

Overview
The Brokk 130⁺ is a remote-controlled demolition robot designed for confined and hard-to-reach areas. It combines high impact energy with intelligent power management for efficient breaking performance and a 360° working radius for flexible operations.

Key description
The Brokk 130⁺ is equipped with the BHB 175 breaker and the Brokk SmartPower+ electrical system. It delivers 20% more hitting force and 40% higher impact frequency compared with previous models, increasing productivity by 40–60%. Precise movement control improves smoothness of operation and force distribution.

Highlights

• Increased uptime and consistent power output over time
• Smart sensors and operator support system
• Lightweight ergonomic control box with tilted joysticks
• 20.2 kW Brokk SmartPower+ electrical system
• Compatible with 16 A and 32 A fuses for flexible power options

Features

• Brokk SmartPower+
• Visual status communication system
• Ergonomic control box
• Brokk QuickSwitch

Options (selection)

• Extra Cylinder Protection — Impact protection for C2 and C3 and heat shielding in red-hot environments
• Rubber caterpillar tracks — All-round solution with good grip
• Steel caterpillar tracks — Suitable for hot or sharp material environments
• Heat resistant hoses — For red-hot applications
• Forced draft cooling of machine — For high ambient temperatures; flushes cool air into electrical cabinet and cooler
• Forced draft cooling for breaker — For red-hot applications; flushes air through the breaker
• Steel pads — For placing machine on very hot ground
• Air flushing for breaker — Prevents dust ingress; useful for upward breaking and underwater use
• Waterspray — Sprays water when breaker is activated to bind dust efficiently
• Extra hydraulic function — Required for certain tools
• Counterweight — Allows the use of extra heavy tools
• Lifting eyes — Dedicated lifting eyes for easy connection (regular lifting points are standard)

Attachments (examples)

• Breaker — Brokk’s hydraulic breakers are versatile and effective attachments
• Concrete Crusher — Enables quieter demolition with reduced noise, dust and vibration
• Metal Shears — Cut steel of various sizes
• Drum Cutter — Designed for trenching, demolition and surface preparation of concrete
• Drilling Equipment — For drilling in rock, concrete or compact soil in open or confined spaces
• Planer — Remove concrete, paint, asbestos or other layers in a controlled manner
• Bucket / Clamshell Bucket — Convert the robot into a compact excavator for confined spaces and sorting material
• Multi-Purpose Grapple / Sorting & Demolition Grapple — For loading, sorting and separating debris; suitable for soft demolition and stripping structures
• Cut-Off Saw — Replaces hand-held equipment for cutting applications
• Side Angling Device — Provides additional breaker angle for extremely confined spaces

Technical specifications

• Hydraulic breaker (illustration): BHB 175 (load and stability diagram available on request)
• Performance: Slewing speed 10 sec/360°
• Performance: Transport speed, max. 2.5 km/h (1.6 mph)
• Performance: Climbing inclination, max. 30°
• Hydraulic system capacity: 40 l (10.6 US gal)
• Pump type: Variable load-sensing
• System pressure: 18 MPa (2611 psi)
• Pump flow 50 Hz: 56 l/min (14.8 US gal/min)
• Pump flow 60 Hz: 66 l/min (17.4 US gal/min)
• Power system: Brokk SmartPower+
• Electric motor type: ABB
• Power*: 20.2 kW
• Recommended fuse size*: 32 A
• Minimum fuse size (reduced power)*: 16 A
• Starting device: Soft start
• Control system: Control type: Portable
• Control system: Signal code: Digital
• Control system: Transfer: Professional radio / Cable
• Control system: Range, radio: Up to 300 m
• Weight: Machine weight**: 990 kg (2183 lbs)
• Weight: Recommended attachment weight: 180 kg (397 lbs)
• Noise level: Sound power level LWA***: 91 dB(A)
• Dimensions: Width min. 780 mm (30.7 in)
• Dimensions: Height min. 1160 mm (45.7 in)
• Reach: Vertical reach (incl. breaker): 4300 mm (169 in)
• Reach: Horizontal reach (incl. breaker): 3700 mm (146 in)
• Footnotes: * Valid for 400 V/50 Hz and 440 V/60 Hz
• Footnotes: ** Excluding options and attachment
• Footnotes: *** Measured according to directive 2000/14/EC, excl. attachment
