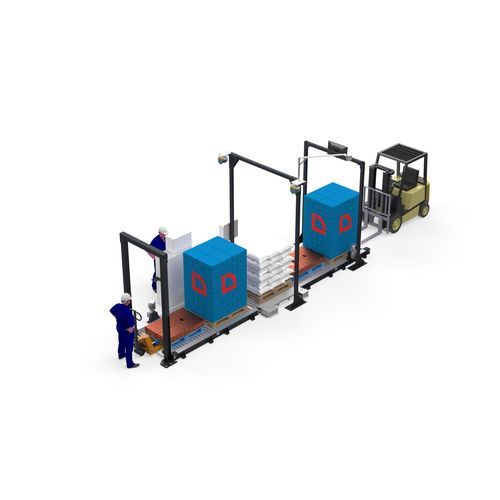

Pallet height measurement system CN.1000

lengthweightload

Pallet dimensioning system Fully automatic pallet dimensioning system for the detection of pallets on the conveyor. All-in-one: dimensioning + weighing + image capture + barcode scanning. As stand-alone solution or as integral part of a pallet conveying system. Pallets are identified by the shipment barcode, which is scanned with a barcode scanner. The data is processed in a local database, which can communicate with the upper-level IT system. Specification • Measuring Capability: Regular or Irregular non-transparent objects • Minimum Object Dimension: 200x200x200 mm • Maximum Object Dimension: 2.000x1.350x3.000 mm (may be adapted to customers needs) • Measurement Accuracy: +/- 30mm • Max. Weight of Load: 1.500 kg • Bar Code reading: Any type, 1D or 2D • Integration Interface: Web Service (Ethernet), or Excel (XML), File Output via RS232. • Data Output: Max. Width, Max. Length, Max. Height, Weight, Barcode, Image, Date • Operating Voltage/Current: 380v/ 30A (max.)
