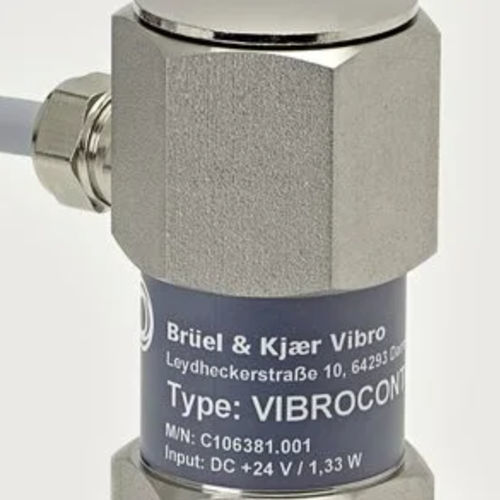

Vibration monitoring system VIBROCONTROL 850

rotary machinefor machine protectiononline

VIBROCONTROL 850 is the successor to the legacy VIBROCONTROL 800 (VC-800) and offers easy-to-use, cost-efficient and reliable protection according to DIN ISO 10816 for a number of different machines, such as blowers, fans, pumps, decanters, separators, compressors and mills. Once installed, the instrument reliably and continuously monitors the machine vibration level against two adjustable alarms. These ensure machine vibrations do not exceed the acceptable level. Installing this online protection device effectively limits the risk of damages to man, machine and environment, and consequently reduces the need for maintenance. The device includes an internal acceleration sensor and provides: •a 4–20 mA analogue output proportional to the vibration velocity in mm/s rms and •relay outputs for alert and danger • Integrated capacitive accelerometer • 2 alarm relays and 1 analog output in a single simple device • Simple on-site configuration possibilities; no additional tools needed • Machine protection according to DIN/ISO 10816 • IP68 Housing • Power supply +24 VDC
