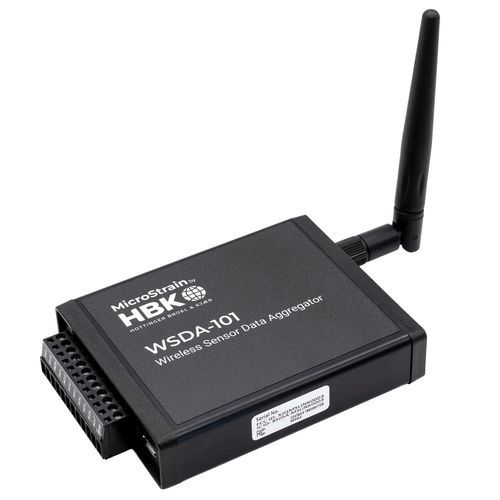

Wireless gateway WSDA-101

USBdata acquisition

Overview
The WSDA-101 Wireless Analog Output Base Station from MicroStrain by HBK streams synchronized sensor data to data acquisition (DAQ) systems via up to eight analog channels. Designed for industrial monitoring and test environments, it provides precise time synchronization and lossless data throughput for reliable integration with wired DAQ and analysis systems.

Key features

• Up to 8 analog output channels for direct DAQ integration.
• Precise time synchronization between sensors (typ. ±50 μs).
• Lossless data throughput to preserve measurement integrity.
• USB connectivity for local data transfer and configuration.
• Compact form factor suitable for distributed wireless sensor networks.

Typical applications

• Industrial condition monitoring and asset surveillance.
• Data acquisition for testing, validation and R&D.
• Distributed wireless sensor networks and field deployments.
• Interfacing wireless analog sensor nodes to wired DAQ systems.

Notes
Distributed by MicroStrain by HBK. The WSDA-101 serves as an interface between analog wireless sensor nodes and local or laboratory DAQ systems; ensure compatibility with your DAQ input ranges and grounding scheme.

Technical specifications

• Model: WSDA-101
• Brand: MicroStrain by HBK
• Product type: Wireless analog output base station
• Analog channels: up to 8
• Synchronization accuracy: ±50 μs (typical)
• Data throughput: lossless transfer design
• Connectivity: USB
• Recommended uses: industrial monitoring, data acquisition, wireless sensor networks
