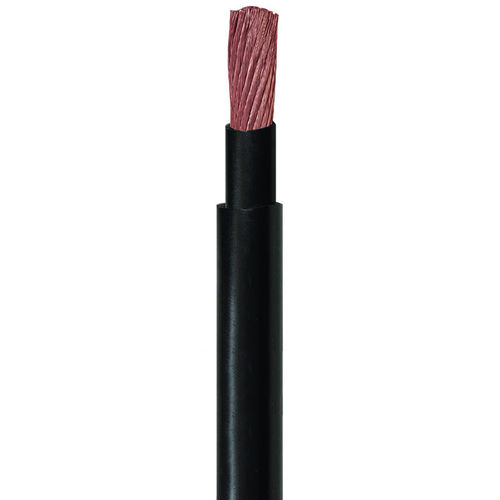

Power cable WILBAwind 0.6

robustcopperflexible

WILBAwind 0.6/1kV, CU, 90°C Halogen-free, flexible double-layer copper class 5 cable for Wind-Energy plants Application Optimized cable for installations inside of wind energy plants. Construction * Copper cord: cl. 5 (IEC 60228) * Insulation cross-linked Polymers * Sheath cross-linked Polymers (HFFR) Description * very robust and endurable * very good resistance to abraison * very good flexibility at low temperatures * excellent resistance to higt tempertures * halogen-free * flame-retardand * very good oil- and petrol-resistance * resistance to ozone- and weather * Min. bending radius 6 x D (D = outer-Ø) Electrical data * Nominal voltage Uo/U 0.6 / 1 kV * Operating voltage max.: AC: Uo/U 0.72 / 1.2 kV DC: Uo/U 0.9 / 1.8 kV Temperature range * ‑40° ... +90°C * in case of a short circuit +250°C for 5 s Jacket colour Black similar to RAL 9005 Standards Based on DIN VDE 0250‑813 IEC 60332‑1‑2 Flame retardant IEC 60754‑1 Halogen free IEC 60754‑2 No corrosive gases IEC 61034‑2 Low smoke emissions IEC 60811‑401 Resistance to oil EN 50396 Resistance to ozone ISO 4982‑2 UV resistance (test method A) Remarks Other types on request D = whole outer Ø d1 = Ø over conductor
