Compact circuit breaker Horizon

vacuumSF6 gas-insulatedoutdoor

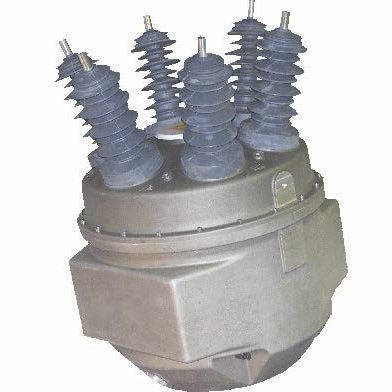

A substation frame, stand or pole-mounted vacuum circuit breaker with SF6 insulation in a self-contained package, the Horizon Compact expands our Horizon family of products. Featuring the most advanced operating mechanism available on the market today – the award winning magnetic actuator technology, the Horizon Compact offers unrivalled reliability, protection and environmental endurance for outdoor circuit breakers. Designed for a 15kV or 27kV application, the Horizon Compact can be used with other products from BRUSH Switchgear to provide cost-effective and compact substations or breathe new life into existing substations by replacing old and obsolete equipment. Key Features Superior, proven technology with minimal maintenance Uses a magnetic actuator driven vacuum circuit breaker without the need for electronic control EPDM Bushings Corrosion resistant, lightweight Aluminium tank and cover Dead tank construction suitable for live or dead tank applications Internal arc certified Cubicle with space for ancillary equipment and option for integrated control and customer specified protection relay Substation frame, stand or pole-mounted, the Horizon Compact can be integrated into the most advanced distribution schemes or operate as a stand-alone breaker Variety of mounting options provide compact solution where space is at premium Horizon Compact Mechanical Features 1.EPDM bushings with a variety of terminal connection options available. 2.Current Transformers are located inside the aluminium housing, providing sealed protection from the environment. 3.Lightweight aluminium housing, secured by stainless steel bolts and incorporating rubber ‘O’ ring seals.
