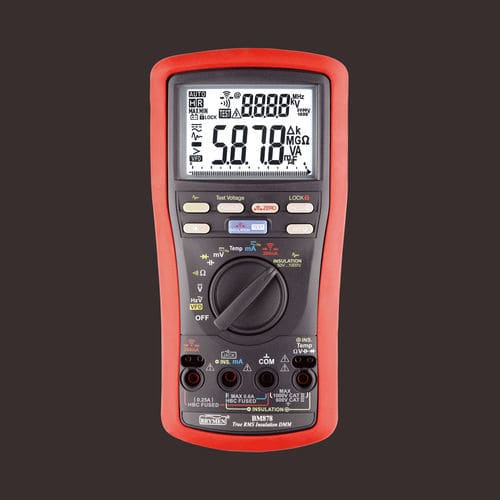

Multimeter with insulation tester BM878

6000 count digitalportable1000 V

5 Test Voltages 50V To 1kV For Insulation! 200mA High Test Current For Earth Continuity! Helps To Determine The State Of Insulation Material And Earth Continuity For Preventive Maintenance! FUNCTION SELECTION - Toggle Conveniently Between Primary & Secondary Functions SMOOTH MODE - Smooth Out Unstable Insulation Resistance Readings AUTO & MANUAL-RANGING - Auto-ranging With Manual-ranging Override ANALOG BAR-GRAPH - Fast Update Rate 60/sec 6,000 COUNTS WIDE-VIEW LCD DISPLAY - 5/sec Fast Nominal Update Rate DUAL DIGITAL DISPLAY - Simultaneously View Relevant Parameters In Complementary Display ASIC TECHNOLOGY - Allows More Functions & Features At Affordable Prices HIGH ACCURACY - 0.2% Basic DCV Accuracy ERGONOMIC STREAMLINE DESIGN - Fits Comfortably In One's Hand LOCK FEATURE - For Two Handed Continuous Testing Without The Need To Press The TEST Button DATA HOLD - Freezes The Displaying Reading For Later View MAX MIN AVG RECORD - Record Max, Min & Avg Readings; Auto-ranging mA & Hz - Measures Currents & Frequencies In Dual Display EARTH CONTINUITY TEST - Test Currents: ≥200mA @ 2.000Ω Range And ≥90mA @ 20.00Ω Range INSULATION RESISTANCE TEST - 5 Test Voltages: 50V, 100V, 250V, 500V & 1000V. It is Useful For Determining The State Of Insulation Material. TYPE-K TEMPERATURE - Measurements -50.0°C To 537.0°C, Selectable °C & °F Readings X-SPEED CAPACITANCE - X-speed Measures Up To 30mF In Only A Few Seconds; 1kV Protection RESISTANCE FUNCTION - Autoranging 600.0Ω To 60.00MΩ TRANSIENT PROTECTION - Up To 8kV 1.2/50μs Lightning Surge; Superb Protection For Serious Users LVD SAFETY - Meets EN61557-1/-2/-4, & EN61010-1/-2-030/-2-033 CAT III 1kV & CAT IV 600V
