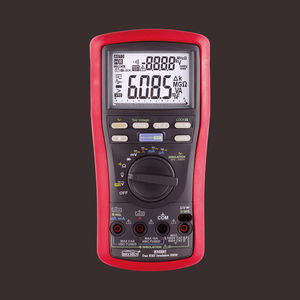

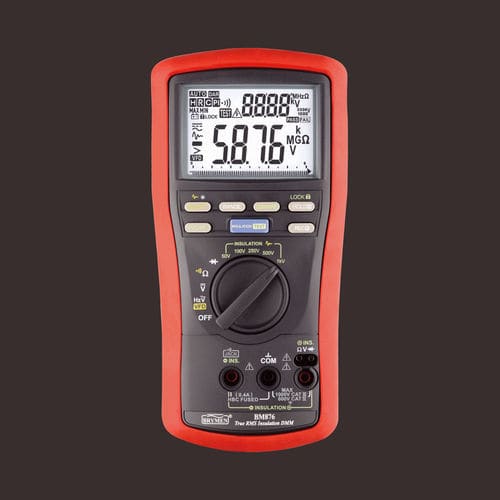

Multimeter with insulation tester BM876

6000 count digitalportable1000 V

5 Test Voltages 50V To 1kV For Insulation! 200mA High Test Current For Earth Continuity! Helps To Determine The State Of Insulation Material! FUNCTION SELECTION - Toggle Conveniently Between Primary & Secondary Functions SMOOTH MODE - Smooth Out Unstable Insulation Resistance Readings AUTO & MANUAL-RANGING - Auto-ranging With Manual-ranging Override ANALOG BAR-GRAPH - Fast Update Rate 60/sec 6,000 COUNTS WIDE-VIEW LCD DISPLAY - 5/sec Fast Nominal Update Rate DUAL DIGITAL DISPLAY - Simultaneously View Relevant Parameters In Complementary Display ASIC TECHNOLOGY - Allows More Functions & Features At Affordable Prices HIGH ACCURACY - 0.2% Basic DCV Accuracy ERGONOMIC STREAMLINE DESIGN - Fits Comfortably In One's Hand LOCK FEATURE - For Two Handed Continuous Testing Without The Need To Press The TEST Button DATA HOLD - Freezes The Displaying Reading For Later View MAX MIN AVG RECORD - Record Max, Min & Avg Readings; Auto-ranging INSULATION RESISTANCE TEST - 5 Test Voltages: 50V, 100V, 250V, 500V & 1000V. It is Useful For Determining The State Of Insulation Material. RESISTANCE FUNCTION - Autoranging 600.0Ω To 60.00MΩ TRANSIENT PROTECTION - Up To 8kV 1.2/50μs Lightning Surge; Superb Protection For Serious Users LVD SAFETY - Meets EN61557-1/-2/-4, & EN61010-1/-2-030/-2-033 CAT III 1kV & CAT IV 600V EMC - Meets EN61326-1: 2006(EN55022, EN61000-3-2/-3 & EN61000-4-2/-3/-4/-5/-6/-8/-11) PROTECTIVE HOLSTER - With Holders For Probe Storage And "third Hand" Feature, Replaceable & Washable AC TRUE Rms - For Non-sinusoidal Waveforms Of Complex Voltage Or Current Signals INTELLIGENT AUTO-POWER-OFF - To Extend Battery Life; Awake Resets On Significant Operation & Measurements
