Audio intercom 344742

videoaccess controldesktop

Description

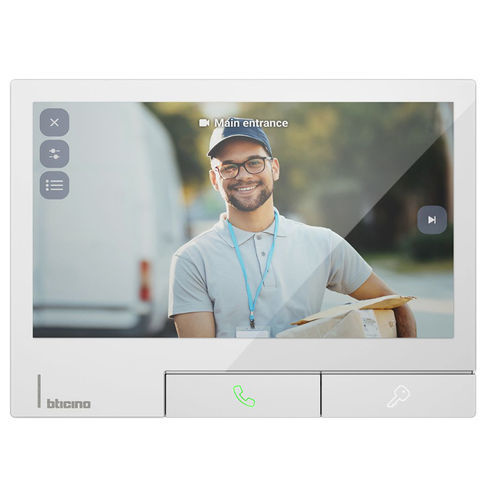

2‑Wires / Wi‑Fi hands‑free connected video internal unit in Light finish, featuring a 7" horizontal capacitive touch LCD (1024 x 600). Two physical keys provide call answer/end, entrance panel activation and electric lock control. Remaining video door entry functions are available via the touch display menus. Digital echo canceller enhances audio quality. LED visual indicators show Wi‑Fi connection status, notifications and call exclusion. The touch display gives access to the notification list and favourite door entry controls.

Functions and integration

• Wi‑Fi 6 connectivity (dual‑band 2.4 GHz / 5 GHz) for router integration.
• Home + Security App integration: call reception, door‑lock release, event timeline, entrance panel activation, camera scrolling and advanced features (Professional Studio, Do Not Disturb).
• Management of Netatmo security products via the Home + Security App.
• Advanced scheduling and customization with Professional Studio and Do Not Disturb functions.
• Optional voice communication with a switchboard following a specific call (if the switchboard is present).
• Device configuration via physical configurators or via the touch display menus for extended customization of functions and texts.
• LED indicators for network/status and call exclusion; 15 selectable ringtones.
• Installation: wall‑mounted using supplied bracket; table‑top with accessory support (model 344632) sold separately.
• Constructed with over 25% chemically recycled plastic.

Technical specifications

• Brand: BTicino
• Series: CLASSE 300X
• Rated voltage: 20–27 Vdc
• Dimensions (W × H × D): 172 × 125 × 19 mm
• Height: 125 mm
• Width: 172 mm
• Depth: 19 mm
• Plant type: 2‑Wires
• Installation height: 160–165 cm
• Operating temperature: 5–40 °C
• Connection type: Connected
• Wi‑Fi: Yes (Wi‑Fi 6; dual‑band 2.4 GHz / 5 GHz)
• Colour / Finish: Light
