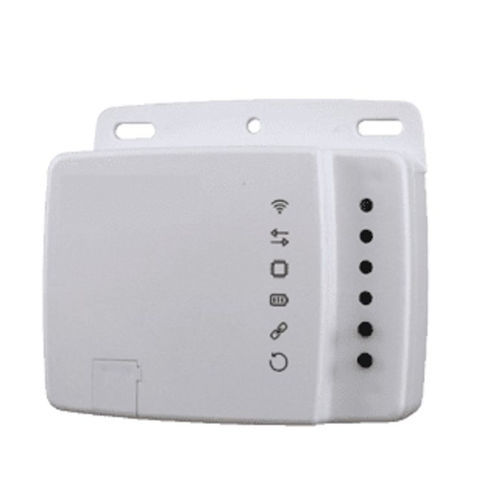

HVAC system controller AZAI6ZWEHIT

Product description
Aidoo Z‑Wave AirZone is a Z‑Wave Plus control device designed for the remote management and integration of MIDEA HVAC units. It connects to Z‑Wave Plus networks and interoperates with Z‑Wave / Z‑Wave Plus certified devices and controllers from any manufacturer. As a continuously powered node, it also functions as a repeater to enhance network reliability and coverage. The device provides Modbus and Wi‑Fi outputs for easy integration with building management systems and remote monitoring solutions.

Features

• Remote management and integration of MIDEA HVAC units
• Connection to Z‑Wave Plus network
• Interoperable with Z‑Wave / Z‑Wave Plus certified devices and controllers from any vendor
• Operates as a repeater (constantly powered node) to improve network reliability
• Outputs: Modbus and Wi‑Fi for BMS and monitoring integration

Technical specifications

• Brand: Legrand
• Rated voltage: 12–16 Vdc
• Input current: 137.5 mA
• Rated power: 310 mW
• Protection class: IP41
• Outputs: Modbus, Wi‑Fi
• Height: 80 mm
• Width: 92 mm
• Depth: 29 mm
• Maximum cable section: 2 × 0.5 mm²
• Operating temperature: 0–45 °C
• Wi‑Fi: yes
• Weight: 130 g
• Series: weoz
