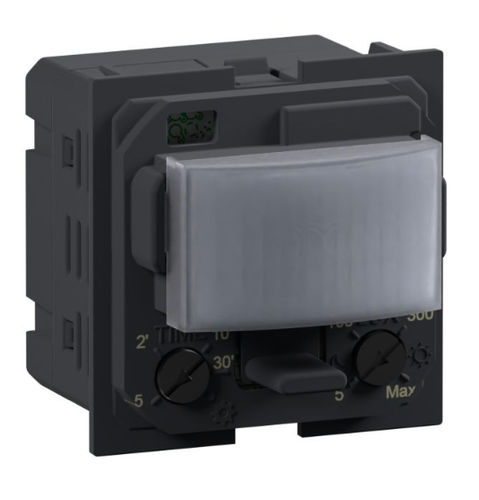

Passive infrared motion sensor K4430N

Description
Switch with passive infrared motion sensor designed for electrical installations in residential and commercial buildings. Suitable for all load types and optimized for LED lamps up to 500 W. Features a twilight circuit with adjustable threshold and an exclusion option, plus a timer circuit with adjustable switch-off delay from 5 seconds to 30 minutes. 170° detection angle, 240 V AC supply, 2 modules.

Features

• Suitable for all load types
• Optimized compatibility for LED lamps (up to 500 W)
• 3-wire connection
• Twilight circuit with adjustable threshold and exclusion option
• Timer circuit: adjustable switch-off delay from 5 seconds to 30 minutes
• 170° detection angle
• 240 V AC power supply
• 2 modules

Series
Living Now

Technical specifications

• Brand: BTicino
• Rated voltage: 240 V a.c.
• Rated power (W): 500 W
• Modules: 2
• Series: Living Now
• Minimum quantity (sales pack): 6
• Sales unit: 6
• EAN code: 8005543819531
• Detection angle: 170°
• Timer switch-off delay: adjustable from 5 s to 30 min
