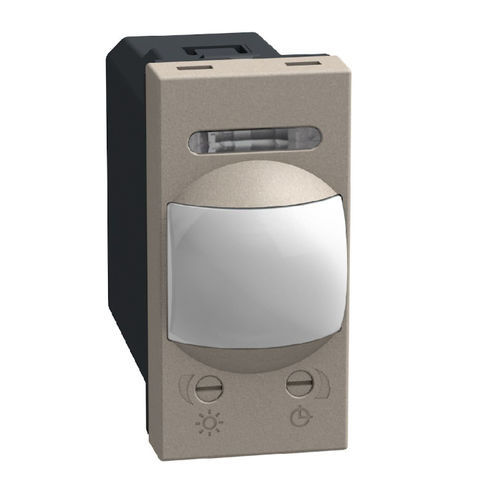

Passive infrared motion sensor YG4431

with presence detector

Description
Automatic switch integrating a passive infrared (PIR) motion sensor for timed control of lighting circuits. Compatible with all load types including LED lamps. 3‑wire connection; adjustable twilight threshold with exclusion option; delay-off adjustable from 30 seconds to 10 minutes; 230 V supply; 1‑module format with stone finish suitable for modular installation.

Features

• Passive infrared (PIR) motion sensor
• Suitable for all types of load, including LED lamps
• 3‑wire connection
• Variable-threshold twilight circuit with exclusion option
• Adjustable timing: 30 s to 10 min
• 230 V power supply
• 1 module
• Finish: stone

Technical features (table)
Brand: BTicino
Product code: YG4431
Rated voltage: 230 Vac
Modules: 1
Series: Light Now
Sensor type: Passive infrared (PIR)
Wiring: 3‑wire
Twilight circuit: variable-threshold, with exclusion option
Timing: adjustable from 30 s to 10 min
Finish: stone

Technical specifications

• Brand: BTicino
• Product code: YG4431
• Rated voltage: 230 Vac
• Modules: 1
• Series: Light Now
• Sensor type: Passive infrared (PIR)
• Wiring: 3‑wire
• Twilight circuit: variable-threshold, with exclusion option
• Timing: adjustable from 30 s to 10 min
• Finish: stone
