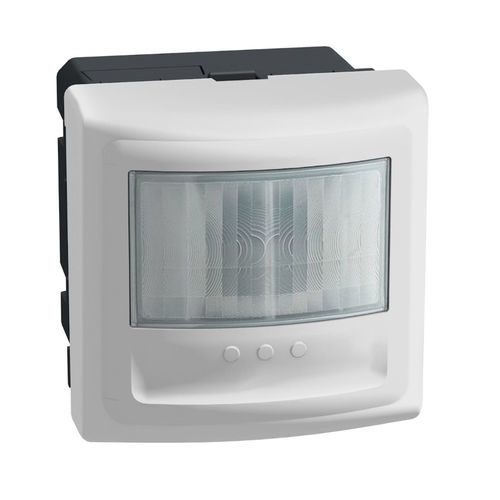

Operating mode selector switch YW4432SN

Product description
Switch with passive infrared (PIR) motion sensor, compatible with various loads including LED lamps. Two‑wire connection. Variable twilight threshold with exclusion option. Adjustable turn-off delay from 5 s to 10 min. 230 V~ power supply. Standby consumption < 0.01 W. Supplied with a mode selector (ON - AUTO - OFF). Detection angle 170°. Detection range 8 m. Light level threshold adjustable from 5 to 1275 lux. Four sensitivity levels.

Accepted power by lamp type

• LEDs, CFLs: 2 to 100 W (LED)
• Halogen, incandescent: 2 to 150 W
• LEDs, CFLs, halogen, fluorescent with ferromagnetic or electronic transformer: 2 to 150 VA

Notes
If multiple sensors are installed on the same circuit, the minimum load changes. Up to 3 sensors can be installed in parallel.

Technical specifications

• Brand: BTicino
• Model / commercial name: YW4432SN
• Rated voltage: 230 Vac
• Rated power (W): 150 W
• Rated power (VA): 150 VA
• Modules: 2
• Series: Light Now
• Detection angle: 170°
• Detection range: 8 m
• Light level threshold setting: 5 to 1275 lux
• Timing (delay off): adjustable from 5 s to 10 min
• Sensitivity: 4 levels
• Operating mode selector: ON - AUTO - OFF
• Power supply: 230 V~
• Standby consumption: < 0.01 W
• Wiring: 2 wires
• Color: white
• Accepted lamp loads: see accepted power by lamp type
