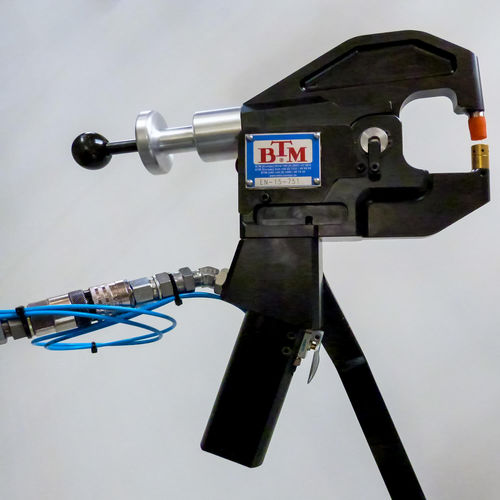

Clinching hand tool CCU 2.5-60

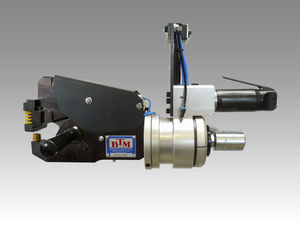

The CCU 2.5-60 is a Hand-Held Clinch Unit with a manually opening jaw that operates with an external pneumohydraulic drive. The clinching stroke is triggered with a one-hand release. These mobile clinching tongs are characterized by a manually opening jaw. This makes it easy to reach clinching positions even with interference contours over 30 mm tall. A throat depth of max. 60 mm with a frame height of also 60 mm allows the user of this type of Clinch Units a wide range of applications. By using the gimbal suspension, the mobile clinching unit CCU 2.5-60 can reach a wide variety of positions and angles of a component.
