Insulation test kit DTU Pro2

electricmanualcomputer-controlled

Overview

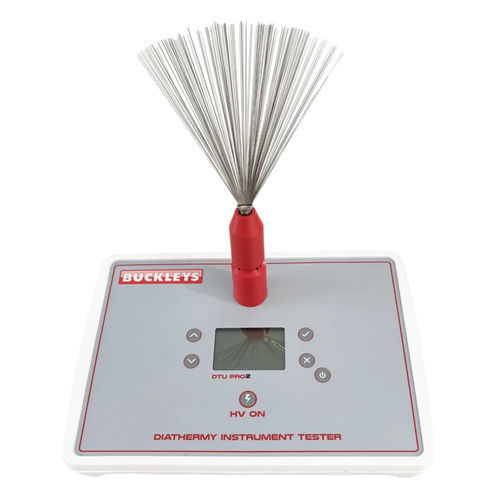

The DTU Pro2 is a non-destructive insulation tester for diathermy instruments which can reduce the unnecessary disposal of diathermy equipment and increase safety for surgeons and patients. The DTU Pro2 can detect the slightest break in the insulation of a diathermy instrument. Such a break can be very difficult and time consuming to detect visually yet may be sufficient to give a patient serious burns or the surgeon a distracting shock.

The DTU Pro2 can be used thousands of times per year, bringing down the cost of testing diathermy instruments and saving hospitals considerable cash drain by eliminating the unnecessary disposal and replacement of non-faulty instruments. The DTU Pro2 is fully portable and lightweight. Its microprocessor- based design incorporates output voltage supervision and output power limiting for increased operator safety. The DTU Pro2 is mains adaptor or battery powered.

Simple to set up and operate, the DTU Pro2 indicates insulation faults by means of an audible alarm and high visibility LCD display. The diathermy instrument is simply passed through an electrode with the whole operation taking no more than a few seconds. Additional electrodes
are available for minimally invasive devices, forceps and cables.

Key features

• Pinpoints the slightest breaks in the insulation
• Compact and portable
• Multi-colour display
• Menu available in EN, FR, DE, ES, IT, PT, PL, TR, RU, NL
• Visual and audible alarm with volume control
• Precise sensitivity control
• One year back-to-base warranty
• Microprocessor controlled
• CE and UKCA approved
