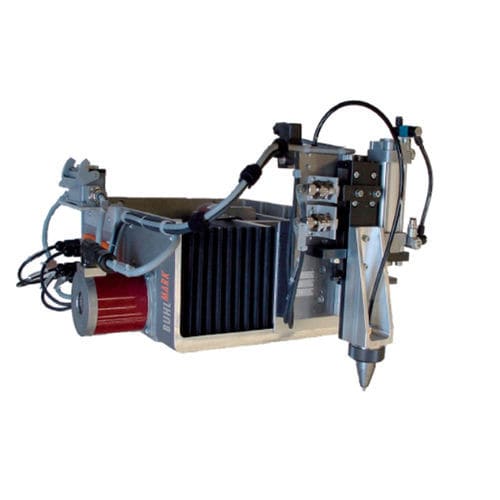

Dot peen marking system BuhlMark

impactautomaticindustrial

Overview
BuhlMark is a permanent marking system for die‑cast parts, designed for integration with Evolution, Fusion and Carat die‑casting machines. The unit is centrally controlled via the DataView display and provides fast, readable and durable marks for industrial traceability.

Key benefits

• Centralised programming — Marking codes can be stored and edited via the machine interface or DataView, enabling error‑free, rapid changes tied to the die program.
• Traceability — Fast, permanent marks ensure reliable traceability of cast parts throughout the production and supply chain.
• Low maintenance — The stamping mechanism is protected for operation in foundry environments, minimising service interventions.

Highlight features

• DataView control — Central operation through the DataView unit; save programming steps and enter texts directly on the display for consistent operator workflow.
• Process feedback — Integrated sensors provide messages, alarms and diagnostic data to the display to support uninterrupted operation.
• Multiple marking styles — Stylus (impact) marking, dot‑matrix marking and Data Matrix coding cover a wide range of identification needs.
• Low marking force — Marking applies limited force to avoid damaging parts and allows marking on slightly curved surfaces.

Application possibilities

• Integration with Evolution, Fusion and Carat die‑casting machines and production cells.
• Used across sectors such as powertrain, e‑mobility, structural components, household appliances and 3C electronics.

Downloads (available documents)

• Carat brochure
• Evolution brochure

Technical specifications

• Product name: BuhlMark
• Brand: Bühler
• Designed for: foundry/press‑casting environments (integration with Evolution, Fusion, Carat)
• Control: Central operation via DataView display; programming as part of the die program
• Marking modes: Stylus (impact) marking; Dot‑matrix marking; Data Matrix coding
• Marking force: Low force to minimise part damage; suitable for slightly curved surfaces
• Sensors: Feedback of messages, alarms and diagnostics to the display unit
• Maintenance: Protected stamping unit for reduced maintenance
• Benefits: Centralised programming, full traceability, low maintenance
• Product code: CUBE-00025-292
