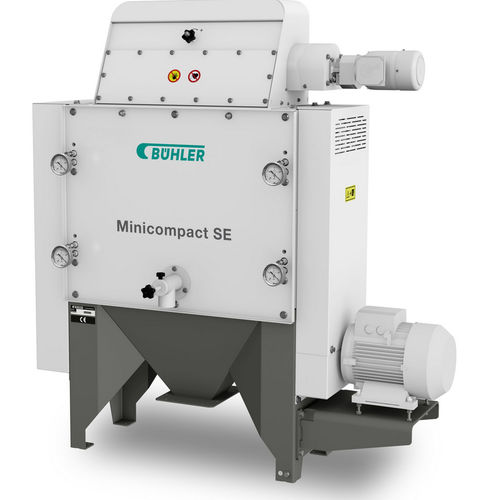

Malt mill Minicompact SE

ricegraincorn

Overview
The Bühler Minicompact SE grist mill delivers optimized grist composition for high yields and short lautering times. Designed for high throughput in a small footprint, it processes malt, barley, broken or white rice, sorghum and corn grits, making it suitable for craft and medium-sized breweries and distilleries.

Key benefits

• High safety standards: proven safety concept with options for tailored explosion protection.
• Versatile grinding: optional two-gap function provides two preset roller distances per passage for rapid adjustment to different grain types.
• High throughput: processes up to 3.2 tons of malt per hour, suited for brewhouse yields from 50 hl to 100 hl per brew.

Highlight features
Safety first
The Minicompact SE is dust-tight and pressure shock-resistant. A permanent magnet removes metallic contaminants, an emergency disengagement prevents rollers from passing foreign objects, and an optional flameless explosion venting device quenches flames while the discharge airlock prevents propagation.

Adjust the grinding gap
Two independent passages allow separate roller-gap settings, enabling easy adaptation to varying malts and grains. The optional two-gap function offers two preset distances per passage for quick changeover.

Sampler optionally available
An optional sampler can be fitted to control and reproducibly verify grist composition, enabling safe sampling of crushed grains.

Compact design
Robust, space-saving construction with integrated outlet hopper reduces installation footprint and simplifies placement where space is limited.

Services and training
Bühler provides services and training to ensure operators are up to date on product features and maintenance procedures, supporting reliable operation and uptime.

Technical specifications

• Throughput: up to 3.2 tons of malt per hour.
• Typical brewhouse yield range: suitable for brewhouse yields from 50 hl to 100 hl per brew.
• Grains processed: malt, barley, broken or white rice, sorghum, corn grits.
• Grinding configuration: two passages adjustable independently.
• Optional two-gap function: two preset roller distances selectable per passage.
• Safety features: dust-tight, pressure shock-resistant, permanent magnet for metal removal, emergency disengagement, flameless explosion venting device (optional), discharge airlock.
• Optional sampler available for reproducible sampling of crushed grains.
• Design: robust, compact with integrated outlet hopper for small-footprint installation.
